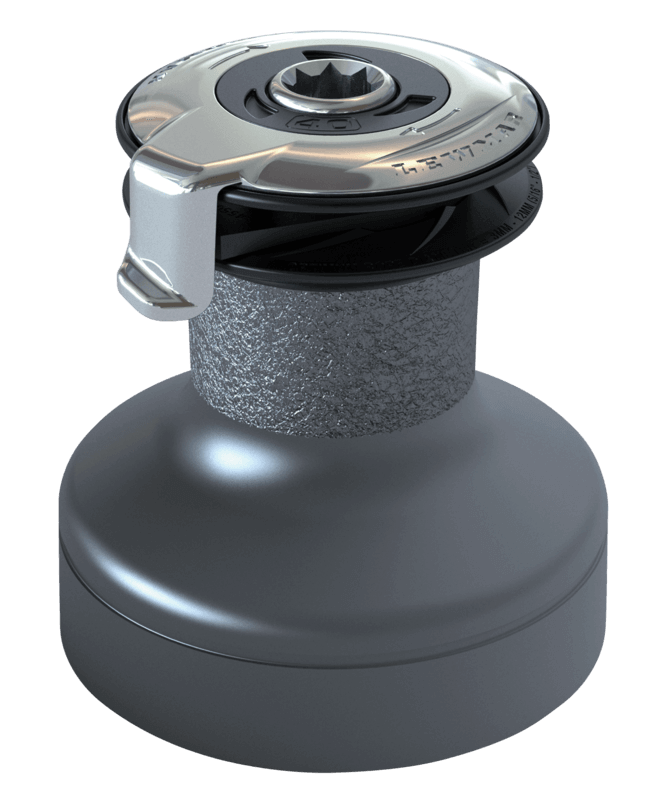

Specifications for Lewmar 40 2 vitesses Winch autobloquant alliage gris EVOⓇ
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Auto-coinceur |
| Load | |
| Charge de travail (kg) | 795 |
| Dimensions | |
| B (mm) | 148 |
| D (mm) | 74 |
| H (mm) | 158.5 |
| L (mm) | 79 |
| Diamètre de l'embase | 148 |
| Ø tourelle (mm) | 74 |
| Hauteur (mm) | 158.5 |
| Hauteur d’entrée du cordage (mm) | 79 |
| Winches | |
| Vitesse 1 (X : 1) | 1.9 |
| Vitesse 2 (X : 1) | 5,8 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 262 |
| Line recovery per rotation - 2nd gear (mm) | 86 |
| Puissance 1 (X : 1) | 13,2 |
| Puissance 2 (X : 1) | 40.2 |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 40 |
| Weight | |
| Poids (g) | 4900 |
| Garantie (année) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
|
Lewmar Evo Winch
Overview of the EVO winch from Lewmar
|
|
|
30-50 EVO EXPLODE.pdf
Exploded Technical Drawing
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
|
|
|
Lewmar_EVO_B13124_Iss_2-3.pdf
|
|
|
|
Evo winch service-B2304iss9_2-2.pdf
|
