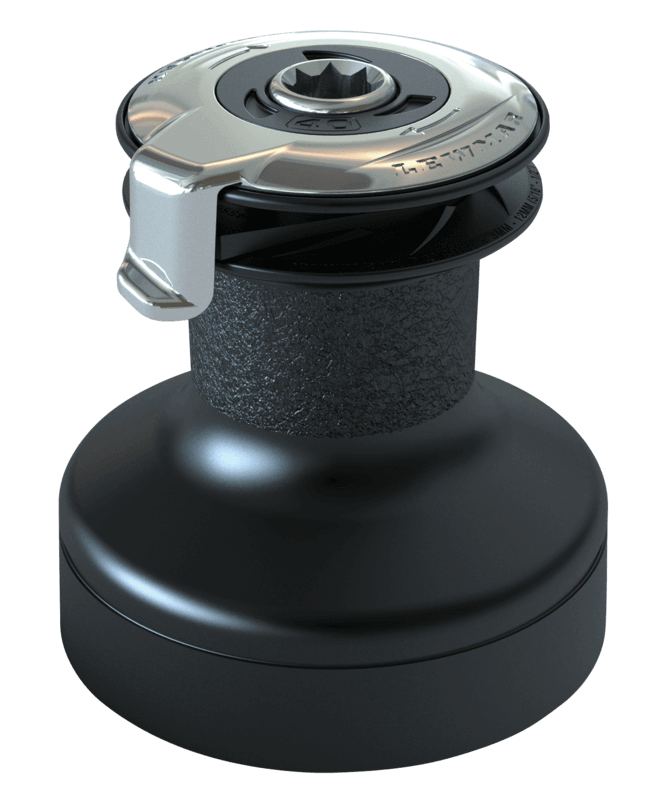

Specifications for Lewmar 15 1 vitesse Winch autobloquant alliage noir EVOⓇ
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Auto-coinceur |
| Load | |
| Charge de travail (kg) | 570 |
| Dimensions | |
| B (mm) | 121 |
| D (mm) | 66.8 |
| H (mm) | 119 |
| L (mm) | 58 |
| Diamètre de l'embase | 121 |
| Ø tourelle (mm) | 66.8 |
| Hauteur (mm) | 119 |
| Hauteur d’entrée du cordage (mm) | 58 |
| Winches | |
| Vitesse 1 (X : 1) | 2 |
| Vitesse (manuelle) | 1 vitesse |
| Puissance 1 (X : 1) | 15,8 |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 15 |
| Weight | |
| Poids (g) | 2600 |
| Garantie (année) | 7 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Lewmar - How to Service an EVO Winch
A step-by-stepy guide to serviving the EVO winch by Lewmar
|
|
|
|
Lewmar Evo Winch
Overview of the EVO winch from Lewmar
|
|
|
15 EVO EXPLODE.pdf
Exploded Technical Drawing
|
|
|
|
DRILLING_TEMPLATES copy-2.pdf
Drilling Templates for EVO and Ocean Winches 14ST-65ST
|
|
|
|
Lewmar_EVO_B13124_Iss_2-3.pdf
|
|
|
|
Evo winch service-B2304iss9_2-2.pdf
|
