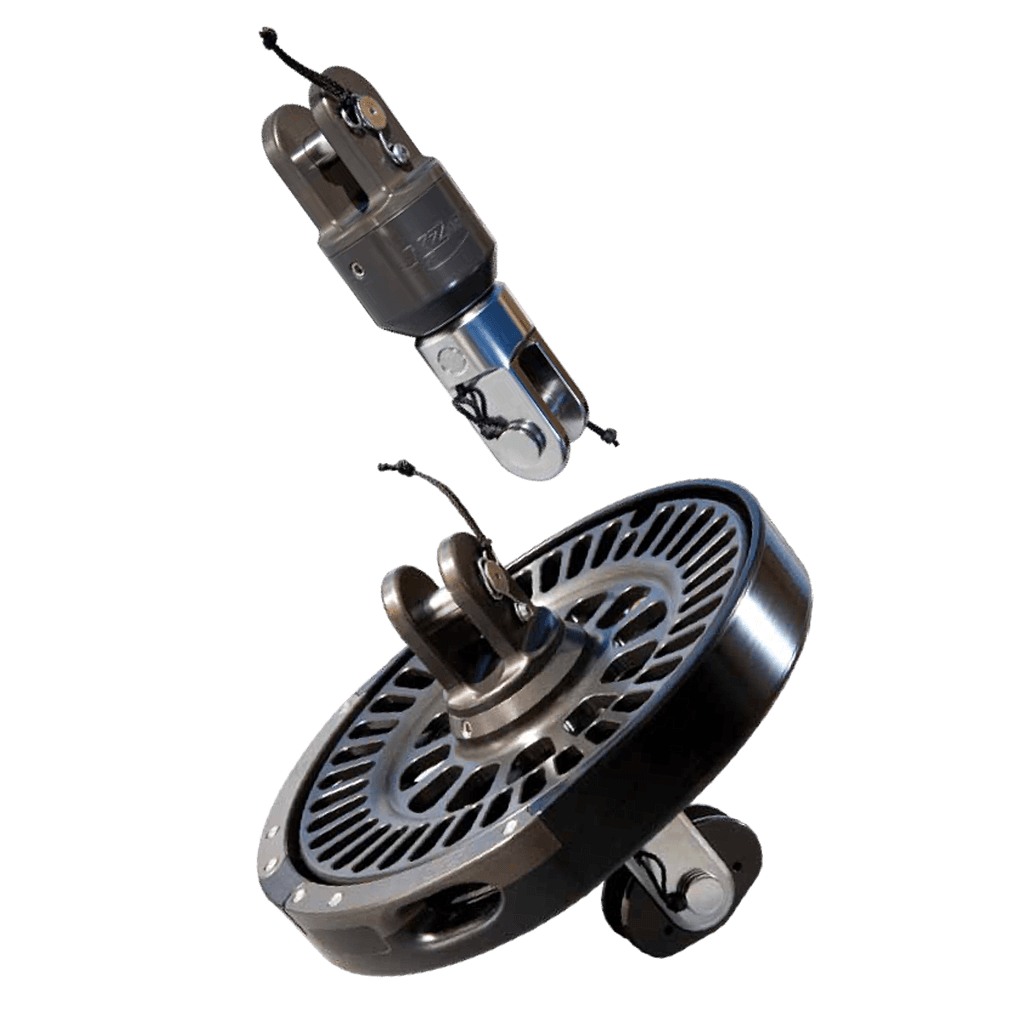

KZ Racefurlers are world renowned for performance and reliability. With the unique modular approach, each furler size can be adapted to suit the specific application.
Each furler is available with a choice of forks on top and various fittings for below the drum, such as Wichard or Tylaska shackles, 2:1 or 3:1 purchase. Similar options are available for the top swivels.
We have grouped the furlers to have the same jaw width between the drum and swivel for simplicity of matching to a torsional cable. Options for below the drum and above the swivel can be chosen via the selection buttons.
Please refer to the relevant technical drawing for all properties.
The Inshore range is a simpler and more cost effective alternative to the Offshore range, suitable for cruising boats and inshore racing.
Spécifications
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 4000 |
| Charge de rupture (kg) | 7200 |
| Dimensions | |
|---|---|
| Ø axe de la chape (mm) | 12,7 |
| Largeur de chape (mm) | 19 |
| Furling | |
|---|---|
| Swivel Upper fitting* | N2 - 16mm Jaw ou N3 - 19mm Jaw |
| Drum Upper fitting | N3 - chape 19 mm |
| Swivel Lower fitting | F3 - Chape 19 mm |
| Undefined | |
|---|---|
| Drum Lower fitting* | F2 - Chape 16 mm ou F206 - Chape 16 mm avec poulie 2:1 ou TA20 - Mousqueton à largage rapide Tylaska (Trigger) |
