KA-KBO20_Karver Drawing Lashing Block_001.PDF
Karver KBO20 Lashing Block Technical Drawing
|
|
|
|
KA-KBO20_Karver 2D Drawing Lashing Block_001.DWG
Karver KBO20 2D Lashing Block Technical Drawing
|
|
|
|
KA-KBO20_Karver 3D Drawing Lashing Block_001.IGS
Karver KBO20 3D Lashing Block Technical Drawing
|

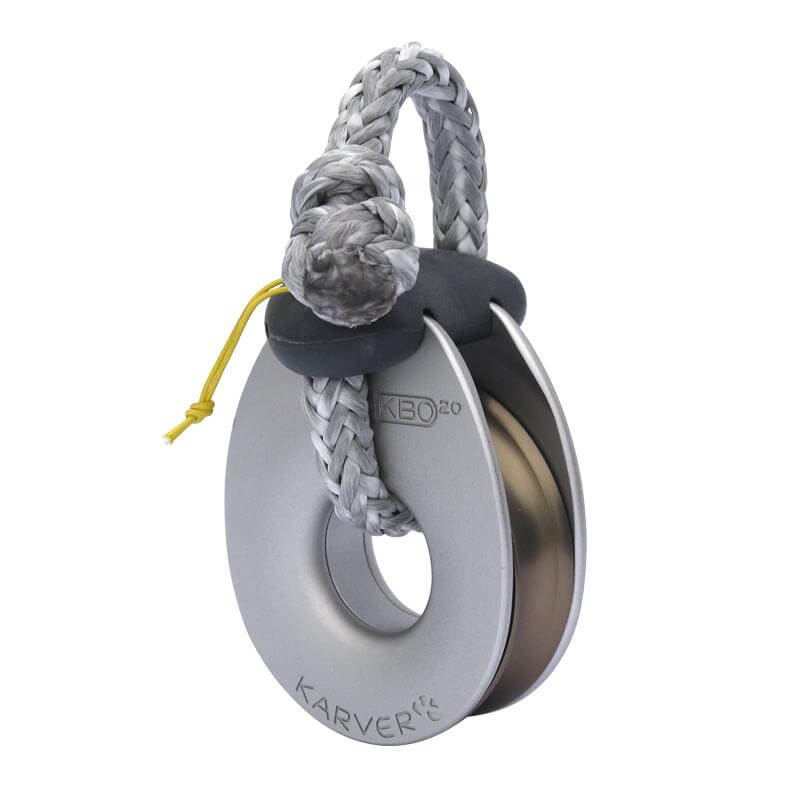

The KBO rope lashing, which comes supplied with the block, makes fitting easier and quicker than standard shackles and will never sieze due to load or rust over the years. The cheeks are made from aluminium alloy and the block features a two stage bearare made from aluminium alloy and the block features a two stage bearing system to enhance their low friction performance under higher loads.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Boat |
|---|
| Load | |
|---|---|
| Charge de travail (kg) | 2600 |
| Charge de rupture (kg) | 5200 |
| Blocks | |
|---|---|
| Bearing type | Ball bearing |
| Winch | Non |
| Dimensions | |
|---|---|
| Ø réas (mm) | 74 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Poids (g) | 186 |
