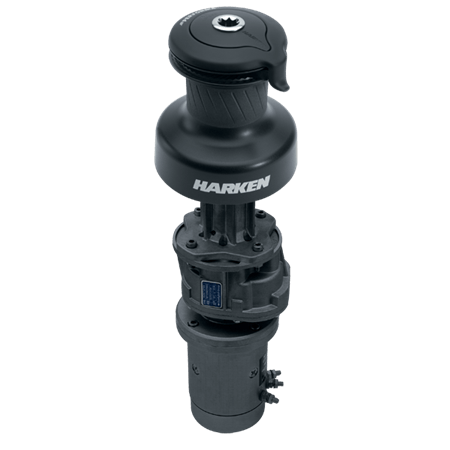

Harken 60 2 Vitesses Électrique (Vertical) 24V Winch Performa en aluminium (Manuel 2 vitesses)
MPN:
N/A
Marque:
Harken
Specifications for Harken 60 2 Vitesses Électrique (Vertical) 24V Winch Performa en aluminium (Manuel 2 vitesses)
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 16 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 2000 |
| Speed (Motor) | 2 vitesses |
| Boat | |
| Style | Vertical |
| Dimensions | |
| A (mm) | 121 |
| B (mm) | 236 |
| C (mm) | 246 |
| D (mm) | 116 |
| L (mm) | 394 |
| N (mm) | 140 |
| Diamètre de l'embase | 236 |
| Ø tourelle (mm) | 121 |
| Hauteur (mm) | 246 |
| Hauteur d’entrée du cordage (mm) | 116 |
| Motor Depth (mm) | 394 |
| Motor Length (mm) | 140 |
| Winches | |
| Vitesse 1 (X : 1) | 4,8 |
| Vitesse 2 (X : 1) | 14,4 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 79 |
| Line recovery per rotation - 2nd gear (mm) | 26 |
| Line speed - 1st gear (m/min) | 24.4 |
| Line speed - 2nd gear (m/min) | 8,1 |
| Puissance 1 (X : 1) | 20,3 |
| Puissance 2 (X : 1) | 61 |
| Pulling load - Max (kg) | 1800 |
| Skirt Details | Intégré |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 60 |
| Weight | |
| Poids (g) | 21700 |
| Garantie (année) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
