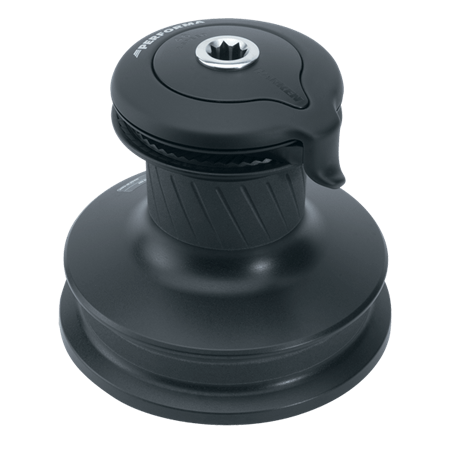

Specifications for Harken 46 2 vitesses 2 tambours S/T Winch Quattro Performa™
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| Charge de travail (kg) | 1300 |
| Dimensions | |
| A (mm) | 100 |
| B (mm) | 218 |
| C (mm) | 202 |
| D (mm) | 90 |
| Diamètre de l'embase | 218 |
| Ø tourelle - basse (mm) | 188 |
| Ø tourelle (mm) | 100 |
| Hauteur (mm) | 202 |
| Hauteur d’entrée du cordage - basse (mm) | 24 |
| Hauteur d’entrée du cordage (mm) | 90 |
| Winches | |
| Vitesse 1 (X : 1) | 2,3 |
| Vitesse 2 (X : 1) | 9,17 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 11,7 |
| Material | |
| Matériau | Aluminum |
| Undefined | |
| Taille | 46 |
| Weight | |
| Poids (g) | 6200 |
Harken Performa™ winches combine the high-efficiency of the Radial line with the sandblasted grip of Harken carbon-fibre racing winches for powerful hybrids. Optimized to handle the high-strength line used on sportboats and performance cruisers, Performa winches are a great solution for crew who don’t wish to invest in carbon winches or who need racing winches in smaller sizes. All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. The Quattro model is an all-in-one Aluminium winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Style | Self-Tailing |
| Load | |
|---|---|
| Charge de travail (kg) | 1300 |
| Dimensions | |
|---|---|
| A (mm) | 100 |
| B (mm) | 218 |
| C (mm) | 202 |
| D (mm) | 90 |
| Diamètre de l'embase | 218 |
| Ø tourelle - basse (mm) | 188 |
| Ø tourelle (mm) | 100 |
| Hauteur (mm) | 202 |
| Hauteur d’entrée du cordage - basse (mm) | 24 |
| Hauteur d’entrée du cordage (mm) | 90 |
| Winches | |
|---|---|
| Vitesse 1 (X : 1) | 2,3 |
| Vitesse 2 (X : 1) | 9,17 |
| Vitesse (manuelle) | 2 vitesses |
| Puissance 1 (X : 1) | 11,7 |
| Material | |
|---|---|
| Matériau | Aluminum |
| Undefined | |
|---|---|
| Taille | 46 |
| Weight | |
|---|---|
| Poids (g) | 6200 |
