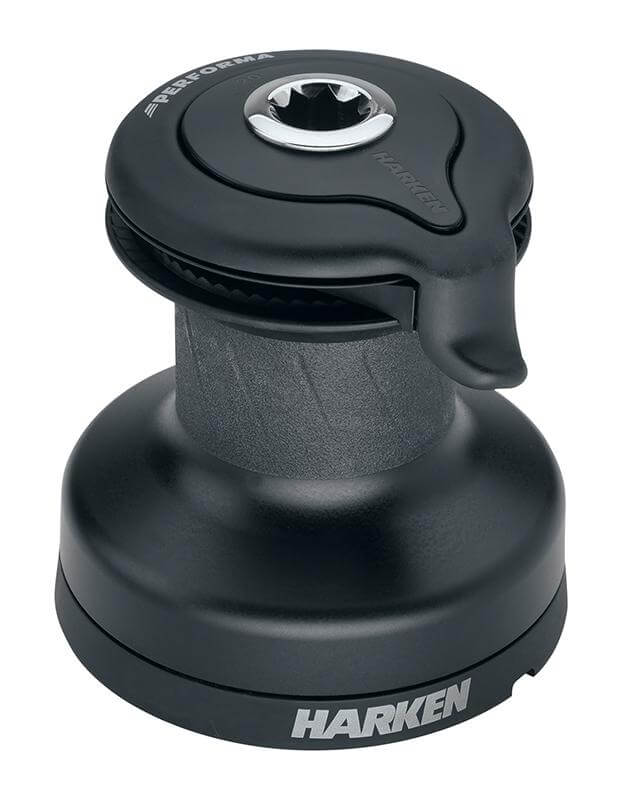

Specifications for Harken 20 1 vitesse S/T Winch Performa™
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 12 |
| Cordage recommandé – Ø Min (mm) | 6 |
| Boat | |
| Style | Auto-coinceur |
| Load | |
| Charge de travail (kg) | 550 |
| Dimensions | |
| A (mm) | 73 |
| B (mm) | 137 |
| C (mm) | 148 |
| D (mm) | 61 |
| Diamètre de l'embase | 137 |
| Ø tourelle (mm) | 73 |
| Hauteur (mm) | 148 |
| Hauteur d’entrée du cordage (mm) | 61 |
| Winches | |
| Vitesse 1 (X : 1) | 2,76 |
| Vitesse (manuelle) | 1 vitesse |
| Puissance 1 (X : 1) | 19,2 |
| Material | |
| Matériau | Aluminium |
| Undefined | |
| Taille | 20 |
| Weight | |
| Poids (g) | 2400 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
