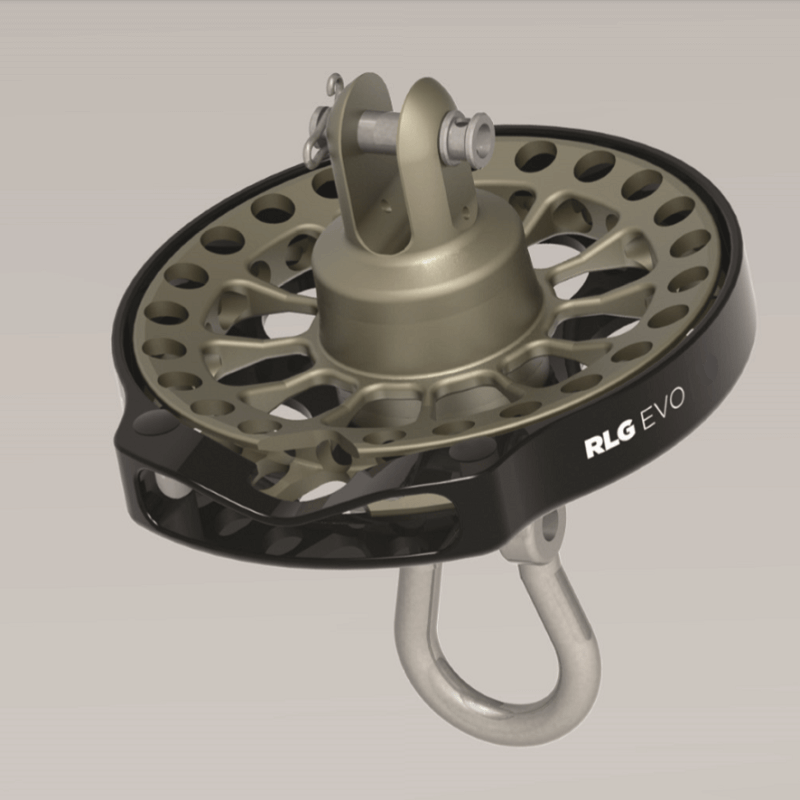

Specifications for Bamar RLG EVO 20 enrouleur - tambour, bottom-up
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat | |
| Taille bâteau recommandée - Max (ft) | 65 |
| Taille bâteau recommandée - Min (ft) | 45 |
| Load | |
| Charge de travail (kg) | 5000 |
| Dimensions | |
| A (mm) | 12 |
| B (mm) | 18 |
| C (mm) | 127 |
| D (mm) | 210 |
| Ø tourelle (mm) | 210 |
| Ø axe de la chape (mm) | 12 |
| Largeur de chape (mm) | 18 |
| Furling | |
| Longueur d'étai Max (mm) | 22 |
| Weight | |
| Poids (g) | 1610 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Boat | |
|---|---|
| Taille bâteau recommandée - Max (ft) | 65 |
| Taille bâteau recommandée - Min (ft) | 45 |
| Load | |
|---|---|
| Charge de travail (kg) | 5000 |
| Dimensions | |
|---|---|
| A (mm) | 12 |
| B (mm) | 18 |
| C (mm) | 127 |
| D (mm) | 210 |
| Ø tourelle (mm) | 210 |
| Ø axe de la chape (mm) | 12 |
| Largeur de chape (mm) | 18 |
| Furling | |
|---|---|
| Longueur d'étai Max (mm) | 22 |
| Weight | |
|---|---|
| Poids (g) | 1610 |
