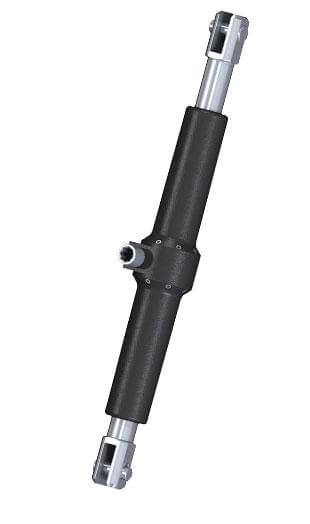

Specifications for Bamar BTM tendeur d’étai à manivelle ø10 - 900 mm
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 5000 |
| Charge de rupture (kg) | 10000 |
| Dimensions | |
| A (mm) | 89 |
| B Max (mm) | 900 |
| B Min (mm) | 600 |
| C (mm) | 27 |
| D (mm) | 16 |
| Ø axe (mm) | 16 |
| Amplitude de mouvement (mm) | 300 |
| Ø cable (mm) | 10 |
| Rigging | |
| Ø de la tige en Rod (mm) | 8,4 |
| Undefined | |
| Taille | 10 |
| Weight | |
| Poids (g) | 7000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
