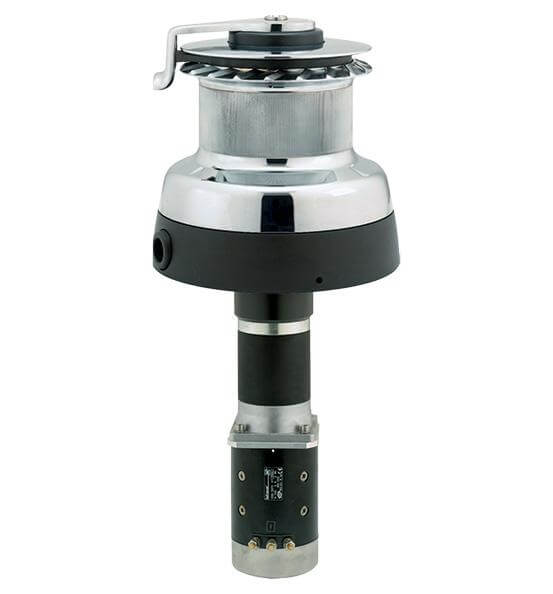

Antal 90 électrique 3 vitesses (vertical) 24V Maxi Winch en bronze chromé (manuel 3 vitesses)
MPN:
N/A
Marque:
Antal
Specifications for Antal 90 électrique 3 vitesses (vertical) 24V Maxi Winch en bronze chromé (manuel 3 vitesses)
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 30 |
| Cordage recommandé – Ø Min (mm) | 16 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 3000 |
| Speed (Motor) | 3 vitesses |
| Boat | |
| Style | Vertical |
| Dimensions | |
| A (mm) | 454 |
| B (mm) | 179 |
| C (mm) | 140 |
| D (mm) | 429 |
| d (mm) | 300 |
| H (mm) | 404 |
| Diamètre de l'embase | 429 |
| Ø tourelle (mm) | 300 |
| Hauteur (mm) | 404 |
| Motor Length (mm) | 179 |
| Winches | |
| Vitesse 1 (X : 1) | 8,2 |
| Vitesse 2 (X : 1) | 21,5 |
| Vitesse 3 (X : 1) | 54.1 |
| Vitesse (manuelle) | 3 vitesses |
| Line recovery per rotation - 1st gear (mm) | 116 |
| Line recovery per rotation - 2nd gear (mm) | 45 |
| Line recovery per rotation - 3rd gear (mm) | 18 |
| Line speed - 1st gear (m/min) | 18 |
| Line speed - 2nd gear (m/min) | 7 |
| Line speed - 3rd gear (m/min) | 2,5 |
| Puissance 1 (X : 1) | 13,7 |
| Puissance 2 (X : 1) | 35.8 |
| Puissance 3 (X : 1) | 90,2 |
| Pulling load - Max (kg) | 8000 |
| Skirt Details | Aluminium noir |
| Material | |
| Matériau | Bronze chromé |
| Undefined | |
| Taille | 90 |
| Weight | |
| Poids (g) | 145000 |
| Garantie (année) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
