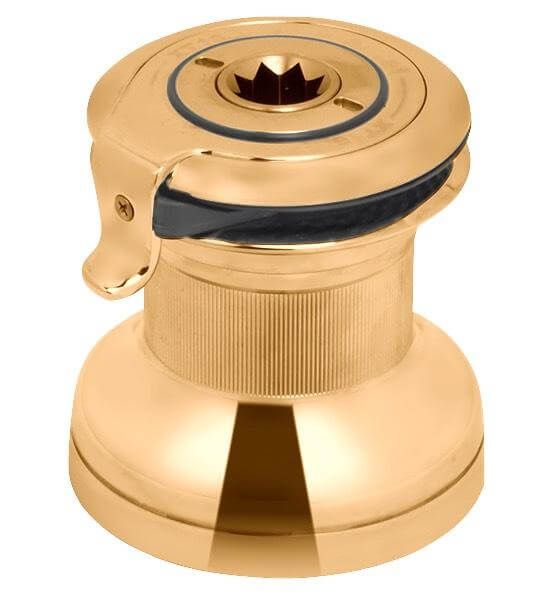

Specifications for Antal 16 Winch bronze self-tailing 2 vitesses
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 10 |
| Cordage recommandé – Ø Min (mm) | 6 |
| Boat | |
| Style | Auto-coinceur |
| Dimensions | |
| Diamètre de l'embase | 112 |
| Ø tourelle (mm) | 71 |
| Hauteur (mm) | 119 |
| Winches | |
| Vitesse 1 (X : 1) | 1 |
| Vitesse 2 (X : 1) | 2 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 229 |
| Line recovery per rotation - 2nd gear (mm) | 115 |
| Puissance 1 (X : 1) | 7 |
| Puissance 2 (X : 1) | 14 |
| Material | |
| Matériau | Bronze |
| Undefined | |
| Taille | 16 |
| Weight | |
| Poids (g) | 3000 |
| Garantie (année) | 3 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT16.2 CH_Exploded view.pdf
Exploded View of Antal Winch XT16.2_CH
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT16.2_XT30.2_635809481143518786.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
