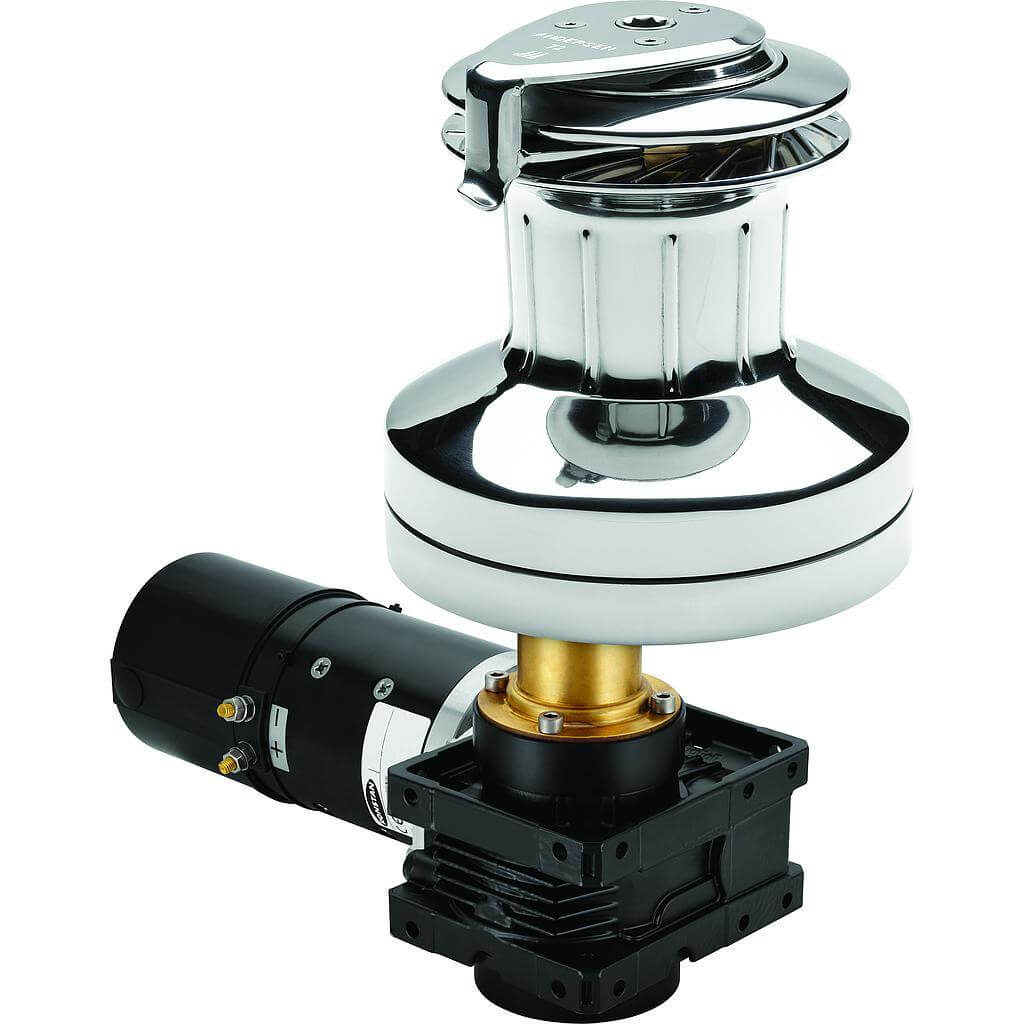

Andersen 72 Électrique 1 vitesse (Horizontal) 24V Inox Winch E1 (Manuel 2 vitesses)
MPN:
N/A
Marque:
Andersen
Specifications for Andersen 72 Électrique 1 vitesse (Horizontal) 24V Inox Winch E1 (Manuel 2 vitesses)
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 18 |
| Cordage recommandé – Ø Min (mm) | 10 |
| Electrics | |
| Voltage (V) | 24 |
| Power (W) | 1500 |
| Speed (Motor) | 1 vitesse |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| B (mm) | 280 |
| D (mm) | 140 |
| H (mm) | 289 |
| J (mm) | 213 |
| K (mm) | 41 |
| L (mm) | 129 |
| N (mm) | 384 |
| S (mm) | 75 |
| Diamètre de l'embase | 280 |
| Ø tourelle (mm) | 140 |
| Hauteur (mm) | 289 |
| Hauteur d’entrée du cordage (mm) | 129 |
| Motor Depth (mm) | 213 |
| Motor Length (mm) | 384 |
| Epaisseur de pont max (mm) | 41 |
| Taille | 72 |
| Winches | |
| Vitesse 1 (X : 1) | 5,8 |
| Vitesse 2 (X : 1) | 20,3 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 76 |
| Line recovery per rotation - 2nd gear (mm) | 22 |
| Line speed - 1st gear (m/min) | 15 |
| Puissance 1 (X : 1) | 20,7 |
| Puissance 2 (X : 1) | 72,6 |
| Pulling load - Max (kg) | 2000 |
| Skirt Details | Intégré |
| Material | |
| Matériau | Acier inoxydable |
| Weight | |
| Poids (g) | 42000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 68ST FS v3.0.F _ 72ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 Electric Self Tailing Winches, Size 68 _ 72 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
