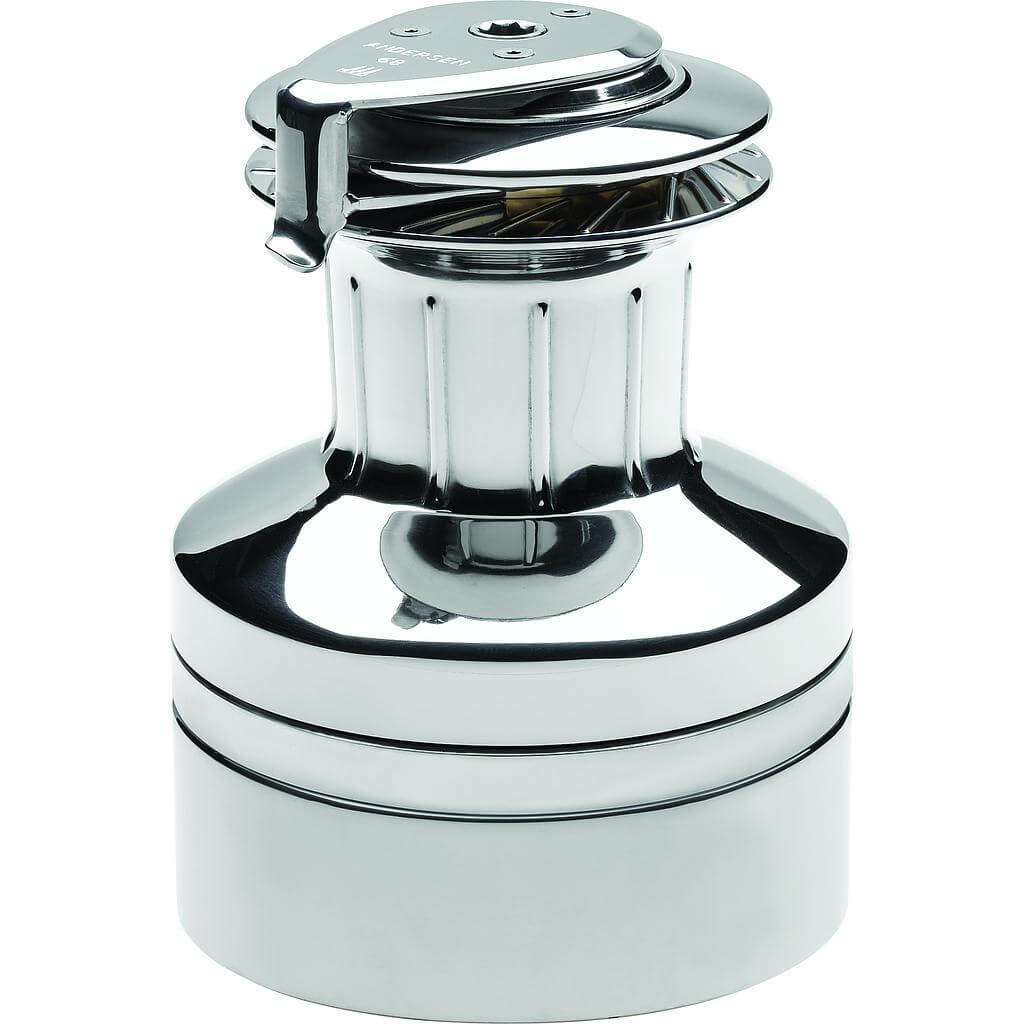

Andersen 68 Électrique à vitesse variable (Compact) 24V Inox Winch sur pont (Manuel 2 vitesses)
MPN:
N/A
Marque:
Andersen
Specifications for Andersen 68 Électrique à vitesse variable (Compact) 24V Inox Winch sur pont (Manuel 2 vitesses)
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 18 |
| Cordage recommandé – Ø Min (mm) | 10 |
| Electrics | |
| Voltage (V) | 24 |
| Speed (Motor) | Vitesse variable |
| Boat | |
| Style | Compact |
| Dimensions | |
| B (mm) | 280 |
| D (mm) | 142 |
| H (mm) | 273 |
| J (mm) | 89 |
| L (mm) | 208 |
| S (mm) | 285 |
| U (mm) | 40 - 75 |
| Diamètre de l'embase | 280 |
| Ø tourelle (mm) | 142 |
| Hauteur (mm) | 273 |
| Hauteur d’entrée du cordage (mm) | 208 |
| Motor Height (mm) | 89 |
| Motor Length (mm) | 285 |
| Winches | |
| Vitesse 1 (X : 1) | 5,8 |
| Vitesse 2 (X : 1) | 18,8 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 77 |
| Line recovery per rotation - 2nd gear (mm) | 24 |
| Line speed - 1st gear (m/min) | 38 |
| Line speed - 2nd gear (m/min) | 18 |
| Puissance 1 (X : 1) | 20,7 |
| Puissance 2 (X : 1) | 67.1 |
| Pulling load - Max (kg) | 1650 |
| Skirt Details | Intégré |
| Material | |
| Matériau | Acier inoxydable |
| Undefined | |
| Epaisseur de pont max (mm) | 27 |
| Taille | 68 |
| Weight | |
| Poids (g) | 51000 |
| Garantie (année) | 2 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 68ST FS v3.0.F _ 72ST FS v2.0.F Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Compact Motor Above Deck Self Tailing Winches, Size 68 _ 72 - Paper size A3.pdf
Winch Mounting Dimension Templates - Paper size A3
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
