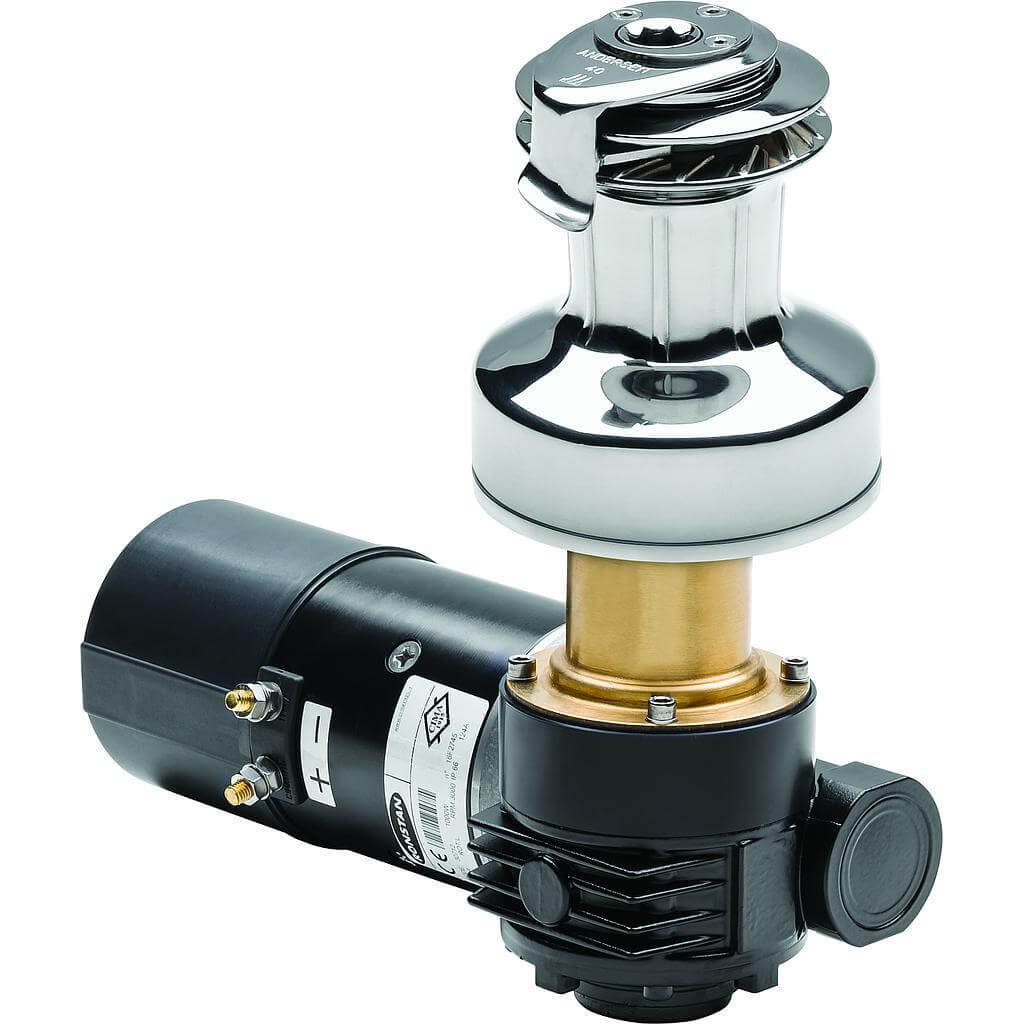

Andersen 40 Électrique 1 vitesse (Horizontal) 12V Winch E1 inox (Manuel 2 vitesses)
MPN:
N/A
Marque:
Andersen
Specifications for Andersen 40 Électrique 1 vitesse (Horizontal) 12V Winch E1 inox (Manuel 2 vitesses)
| Ropes | |
|---|---|
| Cordage recommandé – Ø Max (mm) | 14 |
| Cordage recommandé – Ø Min (mm) | 8 |
| Electrics | |
| Voltage (V) | 12 |
| Power (W) | 1000 |
| Speed (Motor) | 1 vitesse |
| Boat | |
| Style | Horizontal |
| Dimensions | |
| B (mm) | 152 |
| D (mm) | 75 |
| H (mm) | 183 |
| J (mm) | 183 |
| K (mm) | 49 |
| L (mm) | 79 |
| N (mm) | 300 |
| S (mm) | 75 |
| Diamètre de l'embase | 152 |
| Ø tourelle (mm) | 75 |
| Hauteur (mm) | 183 |
| Hauteur d’entrée du cordage (mm) | 79 |
| Motor Depth (mm) | 183 |
| Motor Length (mm) | 300 |
| Epaisseur de pont max (mm) | 49 |
| Taille | 40 |
| Winches | |
| Vitesse 1 (X : 1) | 1,3 |
| Vitesse 2 (X : 1) | 6 |
| Vitesse (manuelle) | 2 vitesses |
| Line recovery per rotation - 1st gear (mm) | 181 |
| Line recovery per rotation - 2nd gear (mm) | 39 |
| Line speed - 1st gear (m/min) | 19 |
| Puissance 1 (X : 1) | 8,9 |
| Puissance 2 (X : 1) | 40 |
| Pulling load - Max (kg) | 800 |
| Skirt Details | Intégré |
| Material | |
| Matériau | Acier inoxydable |
| Weight | |
| Poids (g) | 19000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 40ST v6.0 Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - E1 _ Compact Motor Below Deck Self Tailing Winches, Size 40 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
