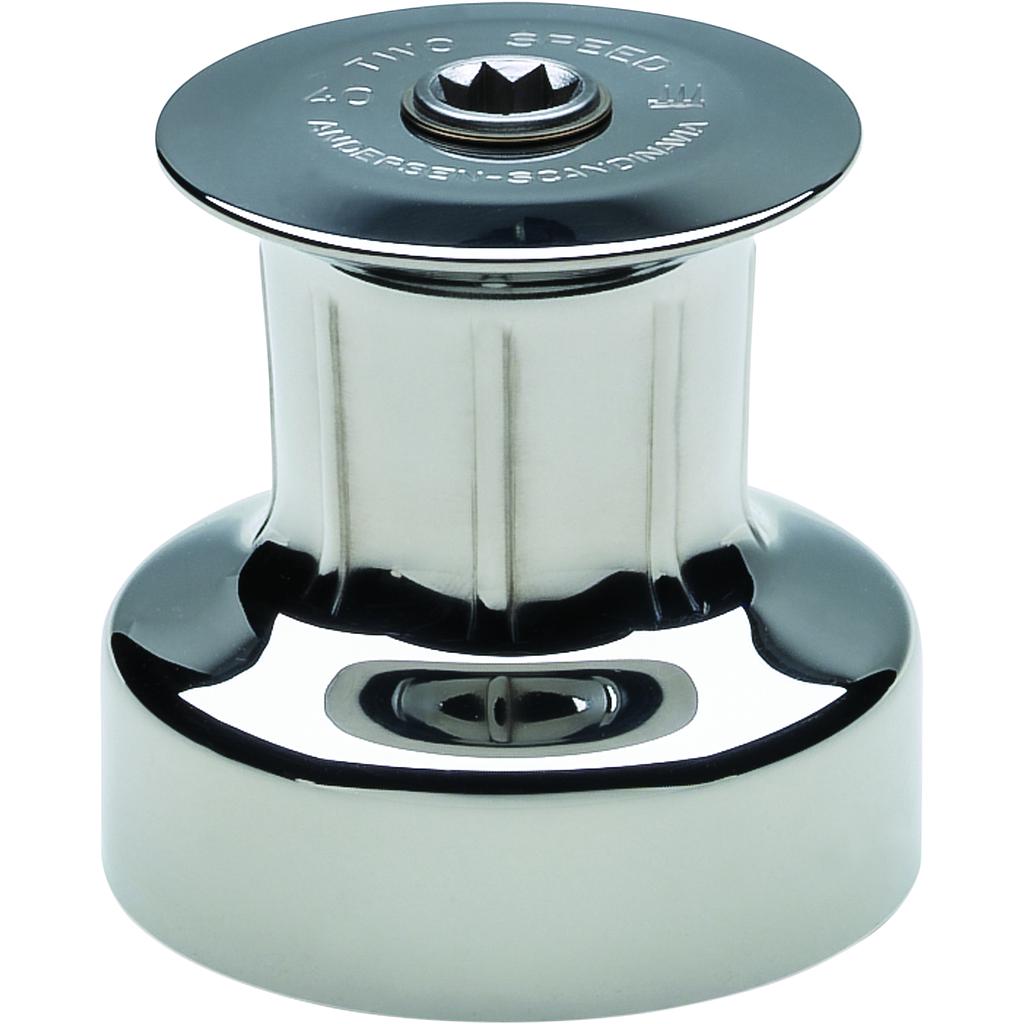

Specifications for Winche Andersen 40 Classic de 2 velocidades, tapa lisa, acero inoxidable
| Boat | |
|---|---|
| Estilo | Tapa lisa |
| Dimensions | |
| Ø de base (mm) | 136 |
| Ø del tambor (mm) | 76 |
| Altura (mm) | 140 |
| Altura de entrada del cabo (mm) | 63 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 1 |
| Relación de engranajes 2 (X : 1) | 6.4 |
| Relación de potencia 1 (X : 1) | 6.5 |
| Relación de potencia 2 (X : 1) | 42.5 |
| Material | |
| Material | Acero inoxidable |
| Weight | |
| Peso (g) | 3900 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Non Self Tailing Classic Winch, Size 40 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
