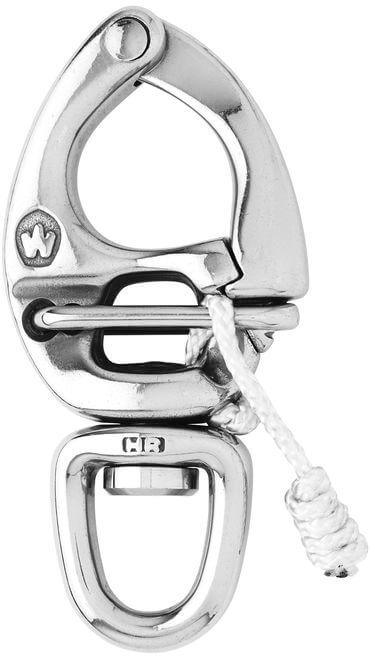

    Wichard HR Snap Shackle – Swivel, Standard Bail, Length 90 mm


    The Wichard HR Swivel Snap Shackle with Standard Bail in the 90 mm size is a high-strength quick-release fitting designed for running rigging applications where increased working load is required without adding unnecessary bulk. Manufactured in France from HR (High Resistance) stainless steel, it offers excellent mechanical strength, fatigue resistance, and corrosion protection for demanding marine environments.

    This 90 mm version provides a further step up in load capacity within the Standard Bail range while maintaining a compact, low-profile design. The Standard Bail allows clean attachment to rope loops, spliced eyes, or shackles, making it well suited to installations where space and weight efficiency are important. The integrated swivel prevents torsional loading and ensures smooth alignment under load during trimming and adjustment.

    The precision-engineered quick-release plunger allows positive disengagement even when the shackle is under tension, providing a critical safety and handling advantage in active sail handling systems. With a Safe Working Load of 1600 kg, this snap shackle is well suited to heavily loaded sheets, control lines, and trim systems on performance cruisers and racing yachts.

    Key features
    • HR stainless steel construction for high strength and corrosion resistance
    • Standard bail for compact, streamlined connections
    • Integrated swivel to eliminate torsional loading
    • Quick-release mechanism operable under load
    • Increased load capacity in a 90 mm low-profile design
    Typical applications
    • Heavily loaded sheets and control lines
    • Trim and adjustment systems
    • Performance cruising and racing yachts
    • Applications requiring fast and reliable load release

    Safe Working Load: 1600 kg

    Overall length: 90 mm


    Especificaciones

    Boat
    Estilo Swivel Bail (Small)
    Load
    SWL (kg) 1600
    NBL (kg) 3200
    Dimensions
    A (mm) 20
    B (mm) 13.5
    Longitud total (mm) 90
    Material
    Material Stainless Steel
    Grado del material AISI 630 (17-4 / HR)
    Compatibility
    Tipo de asa Swivel eye
    Weight
    Peso (g) 136
