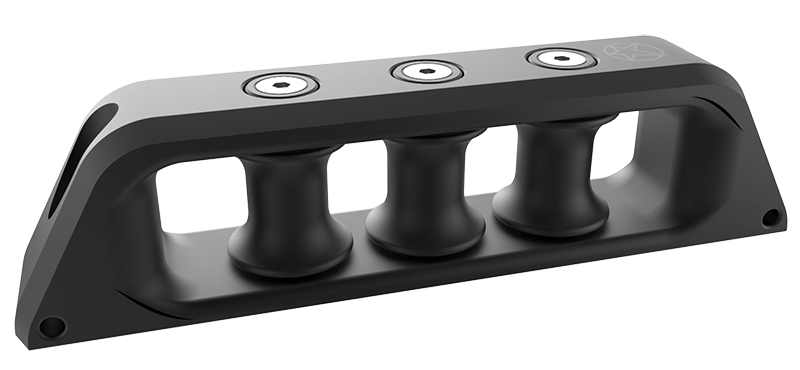

Specifications for UBI Maior Organizador 3 Roldanas 22mm, Alta Carga, MWL 3000Kg
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Boat | |
| Load | |
| SWL (kg) | 3000 |
| NBL (kg) | 6000 |
| Blocks | |
| Material de la roldana | Aluminio |
| Material de las placas laterales | Aluminio |
| Dimensions | |
| A (mm) | 204 |
| B (mm) | 39 |
| C (mm) | 49 |
| Ø de roldana (mm) | 22 |
| Altura total (mm) | 49 |
| Longitud total (mm) | 204 |
| Ancho total (mm) | 39 |
| Weight | |
| Peso (g) | 615 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
