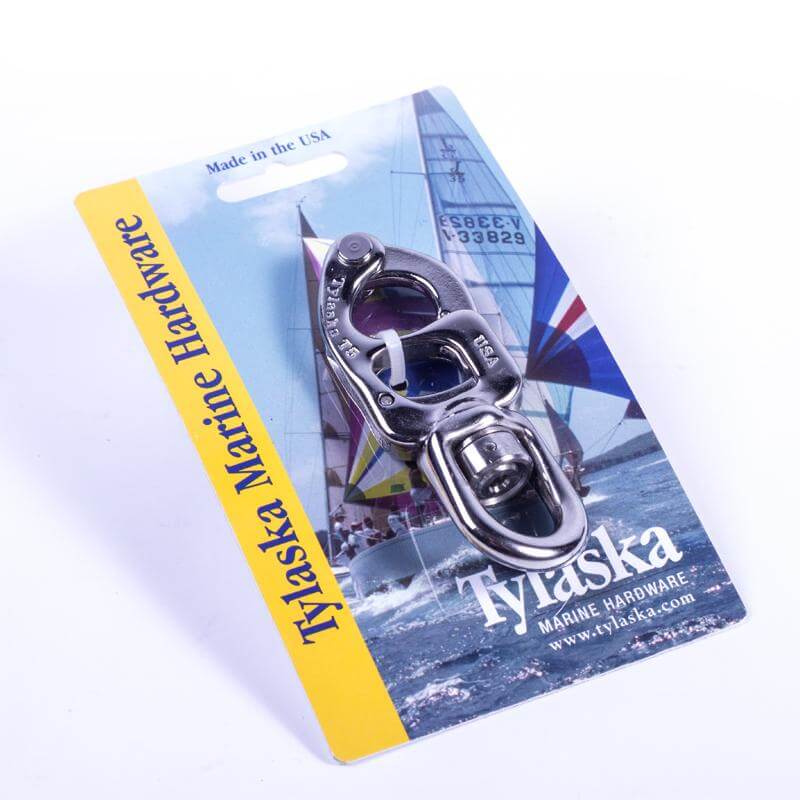

Specifications for Tylaska T5S Grillete de disparo con puente estándar
| Boat | |
|---|---|
| Eslora de barco recomendada - Máx (ft) | 30 |
| Eslora de barco recomendada - Mín (ft) | 20 |
| Estilo | Swivel Bail (Small) |
| Load | |
| SWL (kg) | 1130 |
| NBL (kg) | 2270 |
| Dimensions | |
| A (mm) | 13.5 |
| B (mm) | 12.7 |
| C (mm) | 76.7 |
| Material | |
| Material | Stainless Steel |
| Grado del material | 17-4PH SS |
| Weight | |
| Peso (g) | 61 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Tylaska T5 Snap Shackles are perfect for small boat applications requiring high strength and low weight. They have a SWL of 1,136kg and weigh just 59g in the standard bail configuration. Ideal for J-24s, Mumm 30s and similar boats. Standard Bails provide ample room for attaching a line while keeping weight and overall shackle length to a minimum. Ideal for halyards and sheets.
