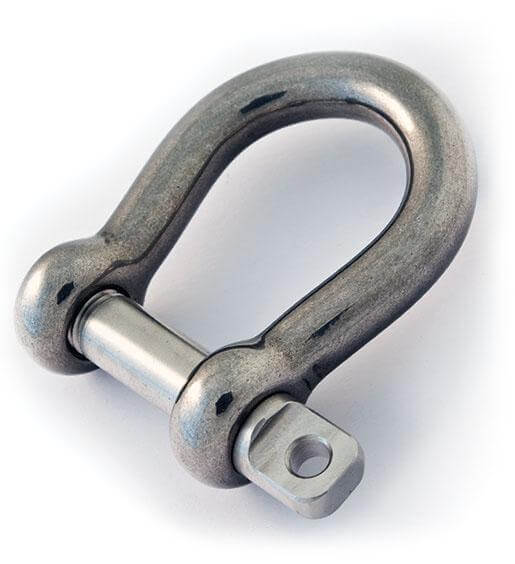

Specifications for Petersen Grillete de lira 8mm
| Boat | |
|---|---|
| Load | |
| NBL (kg) | 2400 |
| Dimensions | |
| B (mm) | 8 |
| J (mm) | 16 |
| L (mm) | 35 |
| P (mm) | 8 |
| W (mm) | 25 |
| Ø del pasador (mm) | 8 |
| Material | |
| Material | Stainless Steel |
| Grado del material | AISI 316L |
| Weight | |
| Peso (g) | 59 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Petersen shackles are produced from 316L grade stainless steel; using electrical upset forging technique, to ensure that the grain flows around the shackle head to give maximum strength. This gives the Petersen shackles a high corrosion resistance and excellent fatigue strength.
The standard screw pin is the most common pin used in stainless steel shackles.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Especificaciones
| Boat |
|---|
| Load | |
|---|---|
| NBL (kg) | 2400 |
| Dimensions | |
|---|---|
| B (mm) | 8 |
| J (mm) | 16 |
| L (mm) | 35 |
| P (mm) | 8 |
| W (mm) | 25 |
| Ø del pasador (mm) | 8 |
| Material | |
|---|---|
| Material | Stainless Steel |
| Grado del material | AISI 316L |
| Weight | |
|---|---|
| Peso (g) | 59 |
