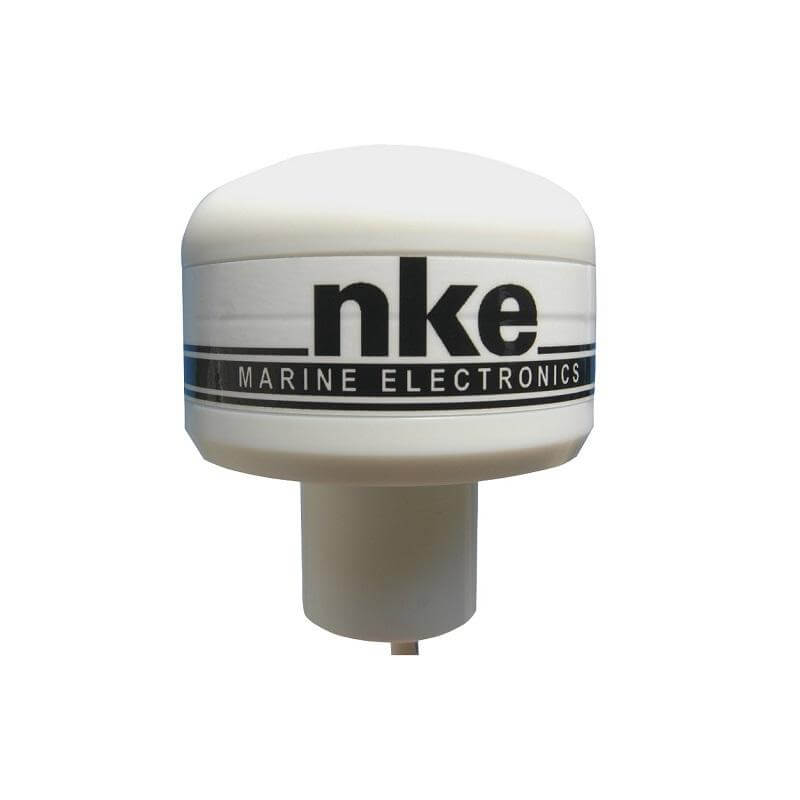

Added to the Coastal package, the nke High Frequency GPS gives Speed over Ground (S.O.G.) and Course Over Ground (C.O.G.)
On all packages with compass and Multigraphic display, the GPS package provides detailed current calculations (in addition to S.O.G and C.O.G). It measures the position several times per second to enhance the accuracy of the recorded track and of the plotted course marks. It also gives accurate real time information, such as distance to the start line and time to burn.
Additional specifications
Cold start: 29 seconds (Time To First Fix),
Hot start: 25 seconds (Time To First Fix),
Sensibility: -165dbm (tracking),
Geodetic system: WGS84,
Compatibility: WAAS/EGNOS/MSAS
Positioning accuracy: 2.5m CEP
Protocol: 1 Topline + 1 NMEA0183-HS (38400 bauds)
Cable: 10m
Operating temperature: -10° to +50°
NMEA version: 3.01
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 9-33 |
| Consumo (mA) | 50 |
| Frec. de muestreo (Hz) | 20 |
| Resistencia al agua | IP67 |
| Boat |
|---|
| Weight | |
|---|---|
| Peso (g) | 500 |
| Garantía (años) | 2 |
