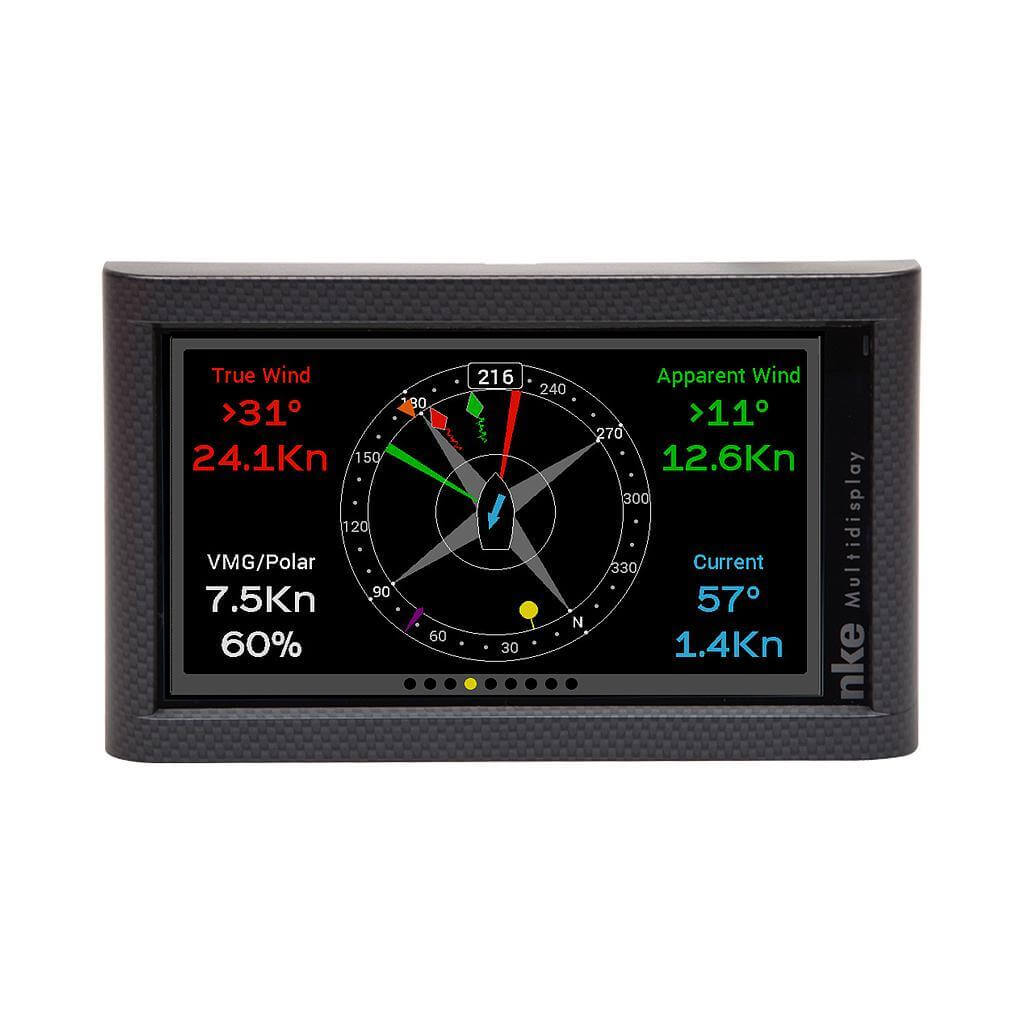

The 7' colour Multidisplay screen from nke offers two dedicated pages for racing ; the 'Tactic' and 'Start' pages display all key information in the cockpit for the tactician and the helmsman. Graphic logs of wind data (speed and direction) can also be displayed to help read wind shift. With a connection to the AIS receiver, an AIS list of the competitors is available on the Multidisplay. In landscape mode, the user-defined pages can be used to display all essential information on the Multidisplay. You can set your own pages with 4 racing setups: A, B, C and D. For example: a start configuration with timer, True Wind Speed, Start Line, etc. The Multidisplay can be mounted as a mast base repeater on boats over 40'. On boats up to 40 feet, it can be mounted vertically (portrait mode) to display 3 functions. The configuration setting is adjusted using an nke Pad. With the nke Pad (Autopilot) the Multidisplay can also be used to control the autopilot.
Consumption: 90mA unlit, 150mA lit
Also available in white.
Especificaciones
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 8-32 |
| Consumo (mA) | 90/150 |
| Resol. angular (grados) | 160/120 |
| Resistencia al agua | IP67 |
| Boat |
|---|
| Dimensions | |
|---|---|
| Profundidad total (mm) | 23 |
| Altura total (mm) | 118 |
| Ancho total (mm) | 192 |
| Weight | |
|---|---|
| Peso (g) | 780 |
| Garantía (años) | 2 |
