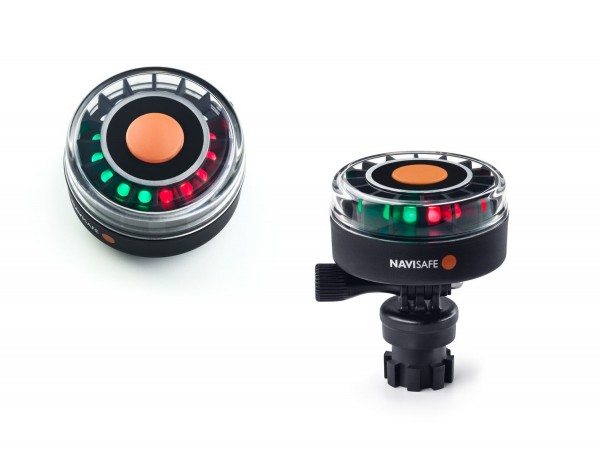

Portable Tricolor Navigation light with Navimount base, compatible with Navisafe’s Navimount system and many GoPro® / Action camera mounts.
The Navilight Tricolor without the Navimount base can be mounted directly to the 4-piece-pole but also directly to all kind of GoPro® / Action camera mounts.
The Navilight Tricolor together with the Navimount base can be mounted directly to all Navimount’s – for example to the Navimount RIB / 954 on the bow of an inflatable or to the Navimount Horizontal / 952 on the cabin roof.
Examples of usage, based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.
On a power-driven vessel of 12 meters or more in length but less than 50 meters in length:
Green or red sidelight
Sternlight
On a power-driven vessel of less than 12 meters in length:
Green or red sidelight
Combined green / red
Sternlight
On a sailing vessel underway:
Green or red sidelight
Sternlight
On a sailing vessel of less than 20 meters in lengths as backup light:
TriColor lantern at or near the top of the mast
Modes / approximate burn time:
16 green / red / white LED, 360° TriColor lantern / 12hrs
10 green / red LED, 225° Bi-Color sidelight / 20hrs
5 green or 5 red LED, 112,5° sidelight / 38hrs
6 white LED, 135° Sternlight / 32hrs
Especificaciones
| Electrics | |
|---|---|
| Tipo de batería | 3x AAA |
| Visibilidad (NM) | 2 |
| Resistencia al agua | 20m depth |
| Boat |
|---|
| Dimensions | |
|---|---|
| Altura (mm) | 90 |
| Ø exterior (mm) | 68 |
| Weight | |
|---|---|
| Peso (g) | 109 |
