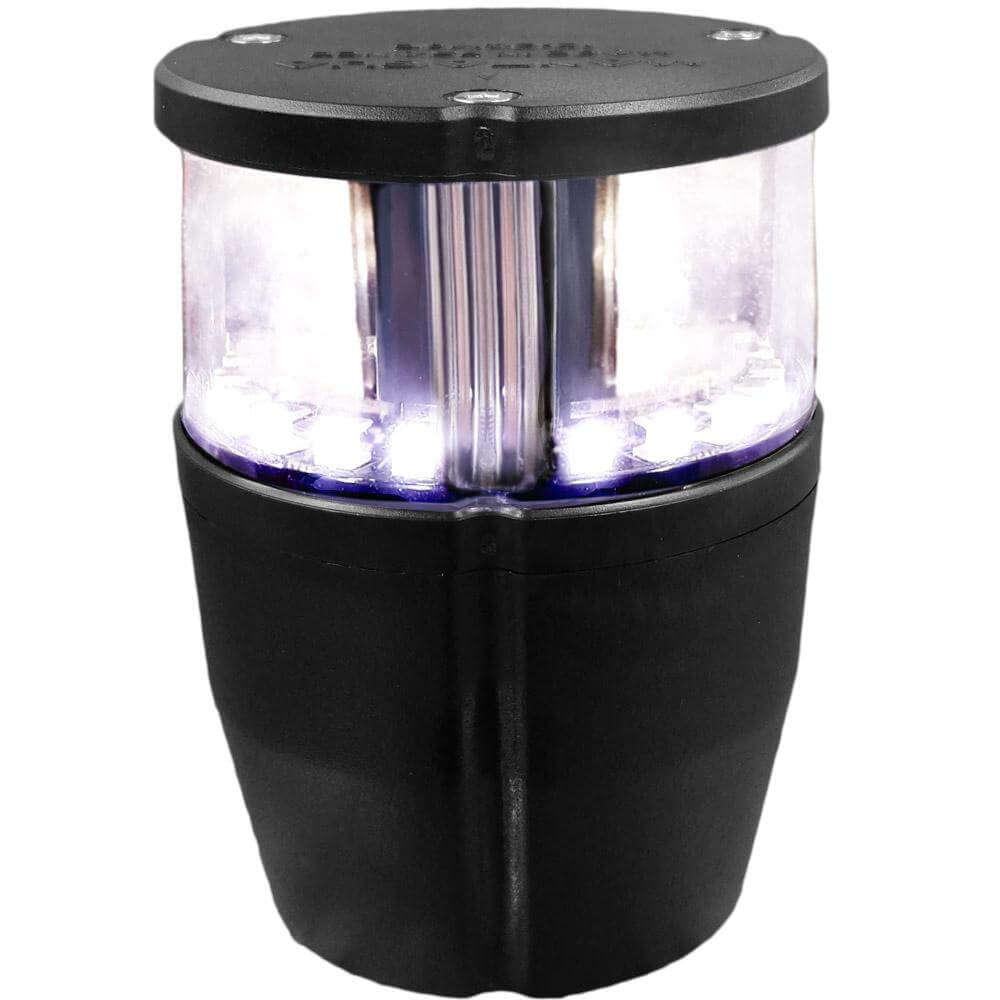

Mantagua NAVIPRO 2NM Luz de tope (Blanca 225°) con luz de fondeo (Blanca 360°)
MPN:
N/A
Marca:
Mantagua
Specifications for Mantagua NAVIPRO 2NM Luz de tope (Blanca 225°) con luz de fondeo (Blanca 360°)
| Electrics | |
|---|---|
| Tensión de funcionamiento (V) | 10-30 |
| Tipo de alimentación | DC |
| Potencia (W) | 2.76 |
| Certificación | WHEELMARK 60427/A0 MED |
| Intensidad luminosa (cd) | >5.4 |
| Visibilidad (NM) | 2 |
| Resistencia al agua | IP67 |
| Boat | |
| Eslora (m) | 12–20 m |
| Dimensions | |
| Altura (mm) | 95 |
| Ø exterior (mm) | 69 |
| Material | |
| Material | PC + ASA |
| Weight | |
| Peso (g) | 170 |
| Garantía (años) | 2 años |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Mantagua Navipro - Installation Video
|
|
|
Mantagua CE Certificate.pdf
|
|
|
|
Navigation Lights Approval - NAVIPRO.pdf
WHEELMARK 60427/A0 MED Certificate of Approval
|
|
|
|
Page_NAVIPRO-98.pdf
|
|
|
|
Instructions_utilisateur_francais-anglais_et_declaration_conformite_03-12-20-13.pdf
|
