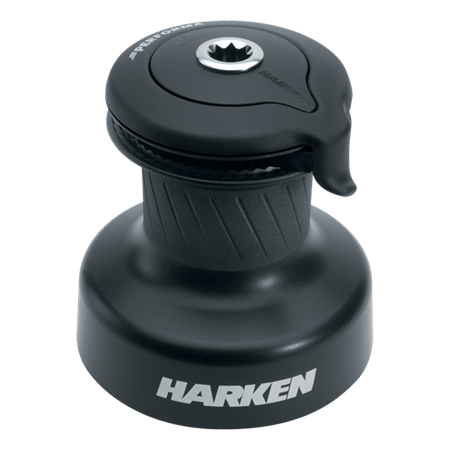

Specifications for Harken 70 2-Speed S/T Performa™ Winch
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 15 |
| Cabo recomendado - Ø mín (mm) | 10 |
| Boat | |
| Estilo | Autocazante |
| Load | |
| SWL (kg) | 2700 |
| Dimensions | |
| A (mm) | 130 |
| B (mm) | 240 |
| C (mm) | 256 |
| D (mm) | 115 |
| Ø de base (mm) | 240 |
| Ø del tambor (mm) | 130 |
| Altura (mm) | 256 |
| Altura de entrada del cabo (mm) | 115 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 5.7 |
| Relación de engranajes 2 (X : 1) | 18.5 |
| Velocidades (manual) | 2 velocidades |
| Relación de potencia 1 (X : 1) | 22.2 |
| Relación de potencia 2 (X : 1) | 72 |
| Material | |
| Material | Aluminio |
| Undefined | |
| Tamaño | 70 |
| Weight | |
| Peso (g) | 11300 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
