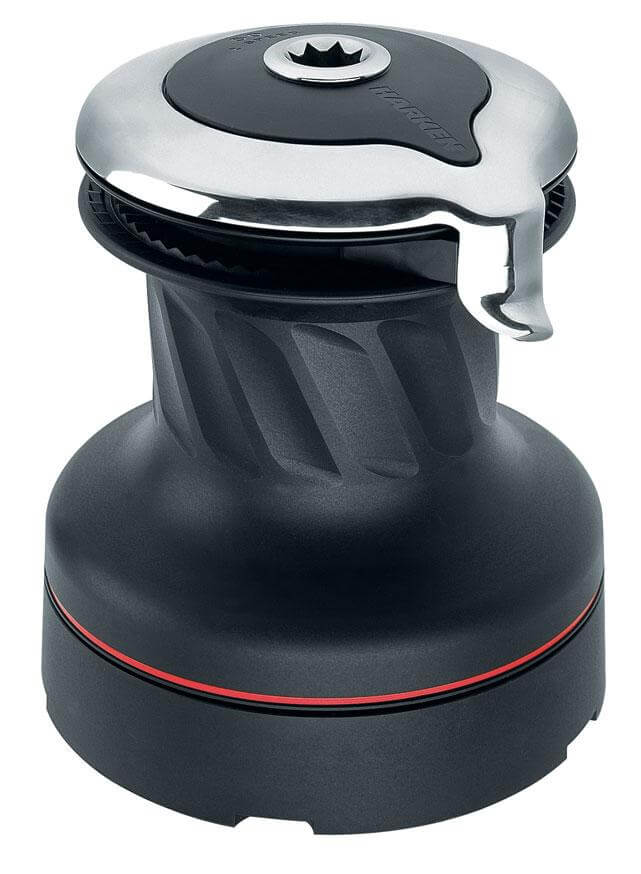

Specifications for Harken 50 2-Speed S/T Radial AL Winch
| Ropes | |
|---|---|
| Recommended line - Max Ø (mm) | 14 |
| Recommended line - Min Ø (mm) | 8 |
| Boat | |
| Style | Self-Tailing |
| Load | |
| SWL (kg) | 1450 |
| Dimensions | |
| A (mm) | 110 |
| B (mm) | 194 |
| C (mm) | 212 |
| D (mm) | 97 |
| Base Ø (mm) | 194 |
| Drum Ø (mm) | 110 |
| Height (mm) | 212 |
| Line entry height (mm) | 97 |
| Winches | |
| Gear ratio 1 (X : 1) | 2.4 |
| Gear ratio 2 (X : 1) | 10.9 |
| Engranaje (manuales) | 2-Speed |
| Power ratio 1 (X : 1) | 10.9 |
| Power ratio 2 (X : 1) | 50.4 |
| Material | |
| Material | Aluminium |
| Undefined | |
| Size | 50 |
| Weight | |
| Weight (g) | 6000 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken's aluminium winches are designed for sailors who want lightweight, extremely strong winches with plenty of power. The Radial winch drum’s gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
