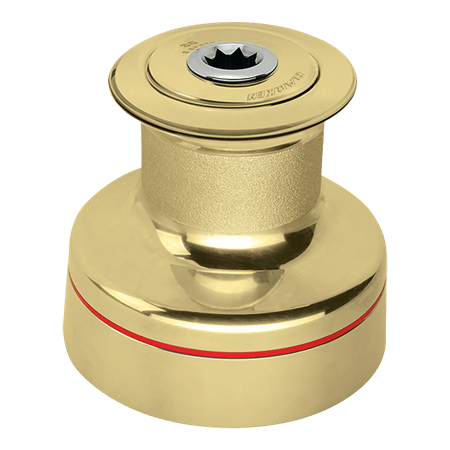

Specifications for Harken 40 Winche Radial de 2 velocidades, tope liso, bronce
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | N/A |
| Cabo recomendado - Ø mín (mm) | N/A |
| Boat | |
| Estilo | Tapa lisa |
| Load | |
| SWL (kg) | 850 |
| Dimensions | |
| A (mm) | 80 |
| B (mm) | 157 |
| C (mm) | 153 |
| D (mm) | 82 |
| Ø de base (mm) | 157 |
| Ø del tambor (mm) | 80 |
| Altura (mm) | 153 |
| Altura de entrada del cabo (mm) | 82 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.13 |
| Relación de engranajes 2 (X : 1) | 6.28 |
| Velocidades (manual) | 2 velocidades |
| Relación de potencia 1 (X : 1) | 13.5 |
| Relación de potencia 2 (X : 1) | 39.9 |
| Material | |
| Material | Bronce |
| Undefined | |
| Tamaño | 40 |
| Weight | |
| Peso (g) | 6100 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
