Specifications for Bamar Sección de perfil BMG40R - 1.5m
| Boat | |
|---|---|

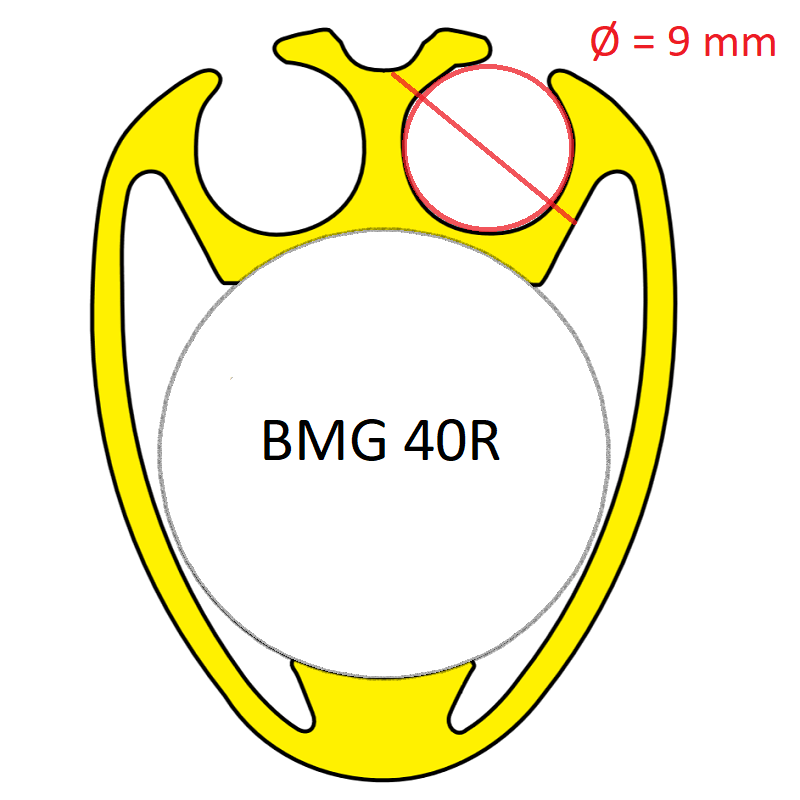

| Dimensions | |
| A (mm) | 32 |
| B (mm) | 40 |
| C (mm) | 23 |
| D (mm) | 9 |
| E (mm) | 4 |
| Ø máx del cable (mm) | 10 |
| Furling | |
| Longitud de extrusión (mm) | 1500 |
| Ø de extrusión (mm) | 32 |
| Peso de extrusión (g/m) | 920 |
| Riel de grátil (simple/doble) | Double |
| Ø del cabo de grátil (mm) | 5 |
| Rigging | |
| Tamaño de panel de varilla Máx | -17 |
| Weight | |
| Peso (g) | 1380 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
The Bamar BMG 40R twin groove foils sections can be fitted on C2 and C3 models. They are made of durable extruded aluminium alloy and their oval section offers high aerodynamic performance. The connection between two foils sections is made through an aluminium splice piece that is inserted inside the foils to ensure a perfect alignment. Each standard furler set has foil sections included, but these 1.5m long sections can be purchased individually for additional forestay length or as spares / replacements.
