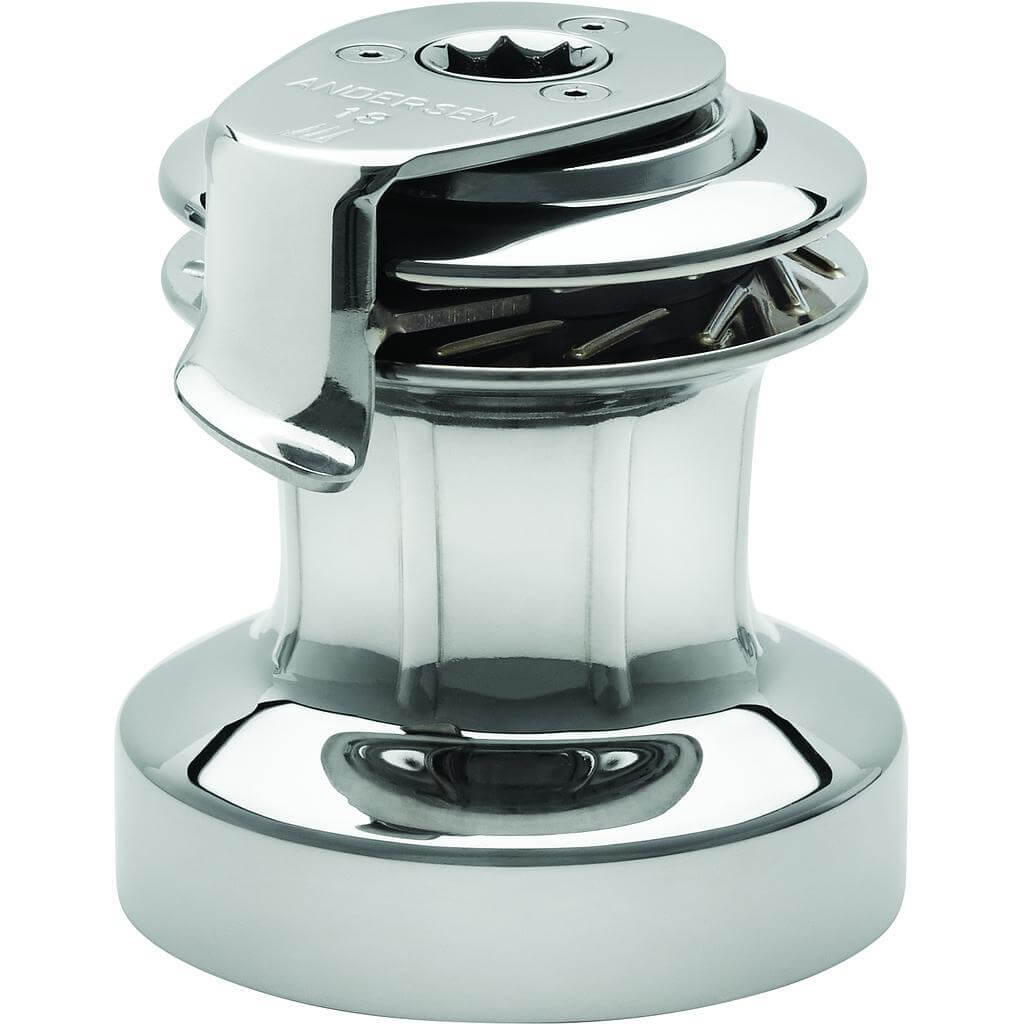

Specifications for Andersen 18 winche autovirante de acero inoxidable de 1 velocidad
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 14 |
| Cabo recomendado - Ø mín (mm) | 8 |
| Boat | |
| Estilo | Autocazante |
| Dimensions | |
| A (mm) | 70 |
| B (mm) | 120 |
| C (mm) | 133 |
| D (mm) | 50 |
| Ø de base (mm) | 120 |
| Ø del tambor (mm) | 70 |
| Altura (mm) | 133 |
| Altura de entrada del cabo (mm) | 50 |
| Winches | |
| Relación de engranajes 1 (X : 1) | 2.6 |
| Velocidades (manual) | 1 velocidad |
| Relación de potencia 1 (X : 1) | 18.8 |
| Material | |
| Material | Acero inoxidable |
| Undefined | |
| Tamaño | 18 |
| Weight | |
| Peso (g) | 3200 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
Andersen - Product manual 18ST v2.0 _ 18ST FS v2.0.F Black Trim and Full Stainless Self-Tailing Winches (A4).pdf
|
|
|
|
Winch Mounting Orientation.pdf
|
|
|
|
Winch Mounting Dimension Templates - Manual Self Tailing Winches, Size 18 - Paper size A4.pdf
Winch Mounting Dimension Templates - Paper size A4
|
|
|
|
Andersen Winch Selection Guide.pdf
|
|
|
|
2020 Andersen Winches Catalogue.pdf
2020 Catalogue
|
