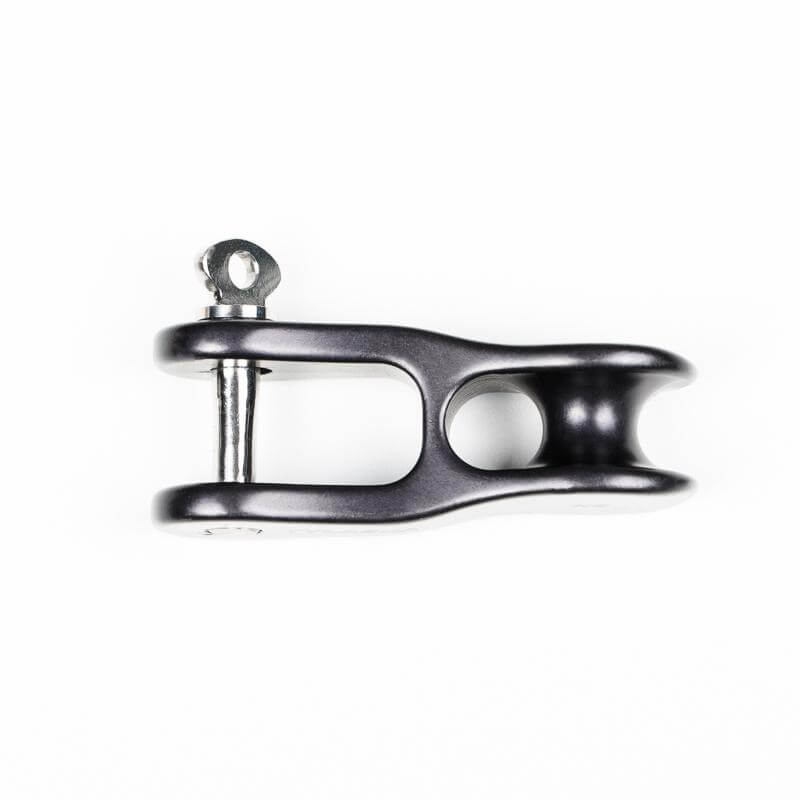

Specifications for Tylaska H5 Aluminium-Fallschäkel
| Ropes | |
|---|---|
| Empfohlener max. Leinendurchmesser (mm) | 8 |
| Boat | |
| Empfohlene max. Bootsgröße (ft.) | 30 |
| Empfohlene min. Bootsgröße (ft.) | 20 |
| Load | |
| SWL (kg) | 1136 |
| NBL (kg) | 2272 |
| Dimensions | |
| A (mm) | 65,3 |
| B (mm) | 25,4 |
| C (mm) | 4,6 |
| D (mm) | 35,6 |
| E (mm) | 23,1 |
| F (mm) | 16,1 |
| G (mm) | 9,5 |
| H (mm) | 19,1 |
| I (mm) | 19,1 |
| J (mm) | 6,6 |
| Material | |
| Material | 17-4PH |
| Weight | |
| Gewicht (g) | 37 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
