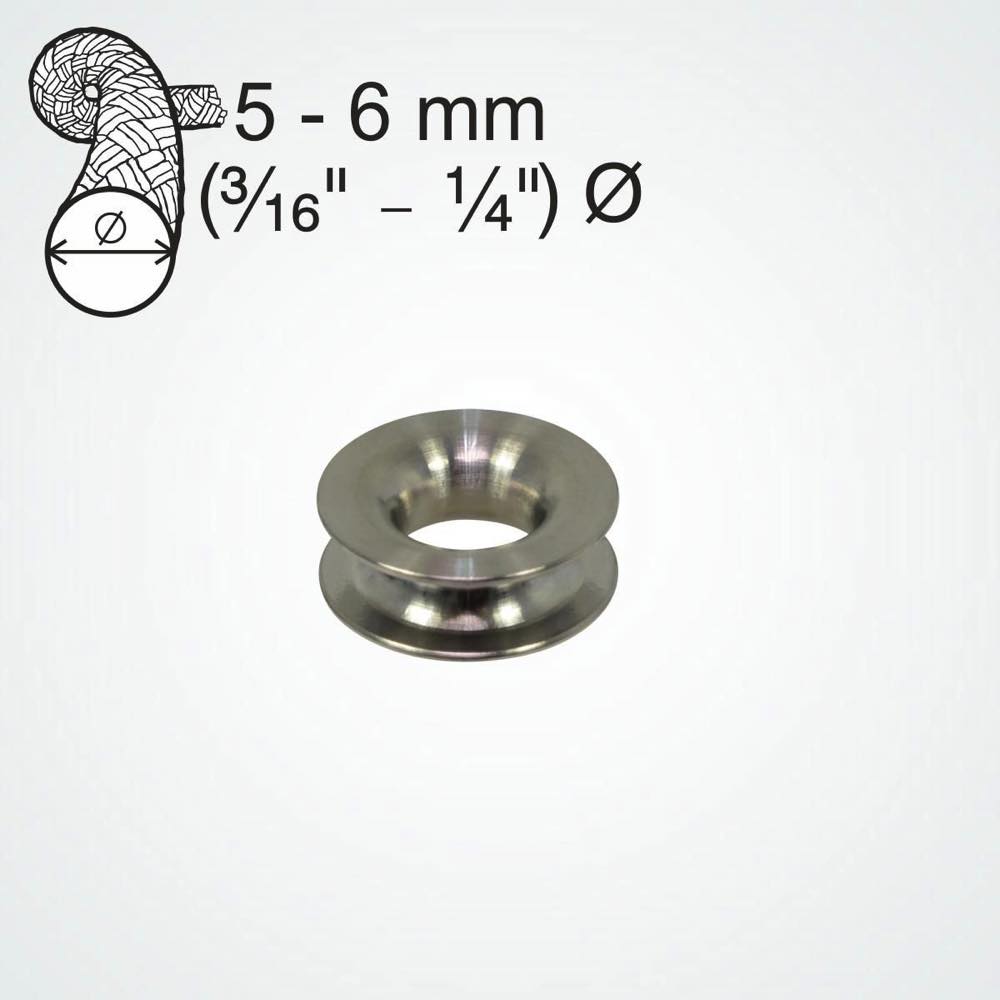

Clamcleat TITAN High Load Thimble – 5–6 mm Lines
High strength and precision for modern rope systems
The 5–6 mm TITAN High Load Thimble delivers the same compact, lightweight design with increased capacity for higher working loads. Rated to 800 kg, it provides reliable strength for control and halyard systems on high-performance dinghies, sportsboats, and small keelboats.
Key features
- Designed for 5–6 mm lines
- Grade 5 titanium
- Working load: 800 kg
- Low-friction, rope-friendly profile
- Fully corrosion-proof
Typical applications
- 4:1 or 6:1 control line systems
- Dyneema® loop terminations
- Kicker or cunningham systems on performance dinghies
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spezifikationen
| Empfohlener max. Leinendurchmesser (mm) | 6 |
| Empfohlener min. Leinendurchmesser (mm) | 5 |
| Innendurchmesser (mm) | 10 |
| Aussendurchmesser (mm) | 23 |
| Material | Titanium |
| SWL (kg) | 800 |
| Gewicht (g) | 4.5 |
