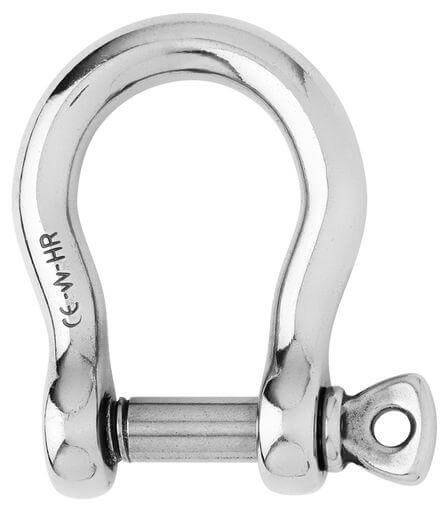

Specifications for Wichard Grillo a lira HR - Dia 14 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 5120 |
| NBL (kg) | 12000 |
| Dimensions | |
| A (mm) | 63 |
| B (mm) | 28 |
| C (mm) | 14 |
| D (mm) | 28 |
| E (mm) | 13 |
| M (mm) | 72 |
| Ø perno (mm) | 14 |
| Material | |
| Materiale | Acciaio inox |
| Grado del materiale | AISI 630 (17-4 / HR) |
| Weight | |
| Peso (g) | 364 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
