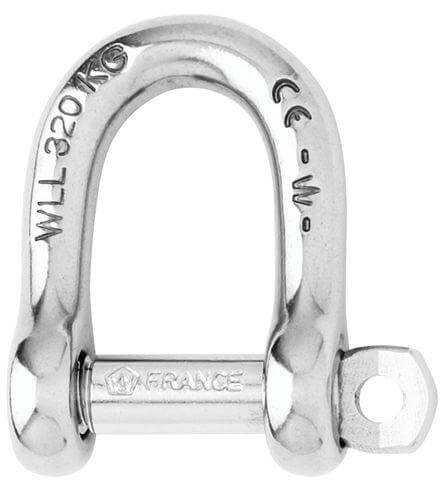

Specifications for Wichard Grillo a D autobloccante - Dia 12 mm
| Boat | |
|---|---|
| Load | |
| SWL (kg) | 2080 |
| NBL (kg) | 6000 |
| Dimensions | |
| A (mm) | 42 |
| B (mm) | 27 |
| C (mm) | 12 |
| D (mm) | 24 |
| E (mm) | 11 |
| F (mm) | 73 |
| G (mm) | 62 |
| Ø perno (mm) | 12 |
| Material | |
| Materiale | Acciaio inox |
| Grado del materiale | AISI 316L |
| Weight | |
| Peso (g) | 193 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
