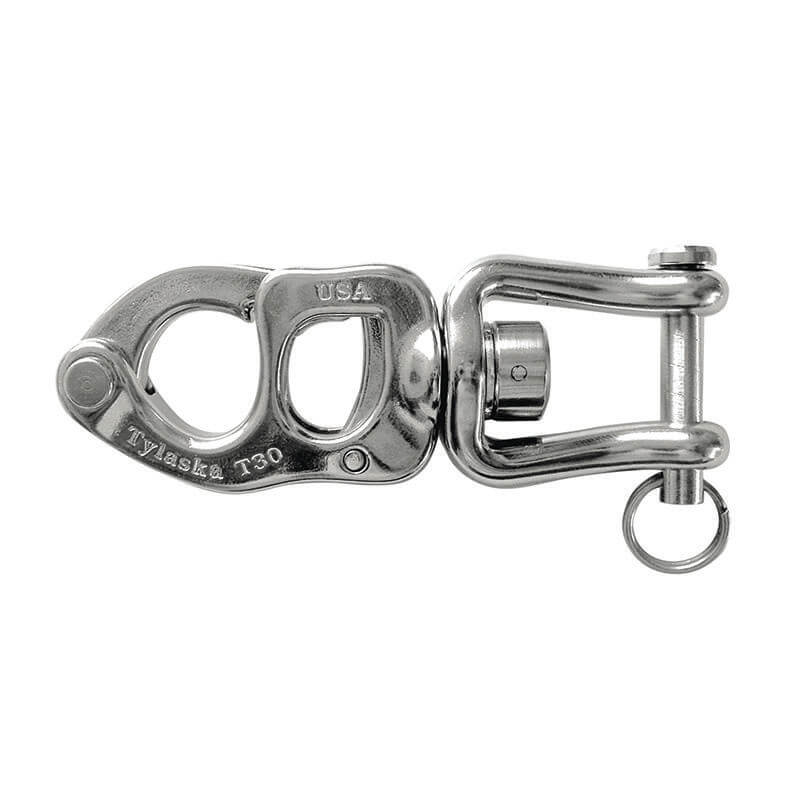

Specifications for Tylaska T30C grillo a scatto con forcella
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 80 |
| Dimensione barca consigliata - Min (ft) | 60 |
| Stile | Grillo a perno con bail girevole |
| Load | |
| SWL (kg) | 4540 |
| NBL (kg) | 13610 |
| Dimensions | |
| A (mm) | 31.2 |
| B (mm) | 34.3 |
| C (mm) | 176 |
| D (mm) | 12 |
| E (mm) | 26.2 |
| Material | |
| Materiale | Acciaio inox |
| Grado del materiale | 17-4PH SS |
| Weight | |
| Peso (g) | 885 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
