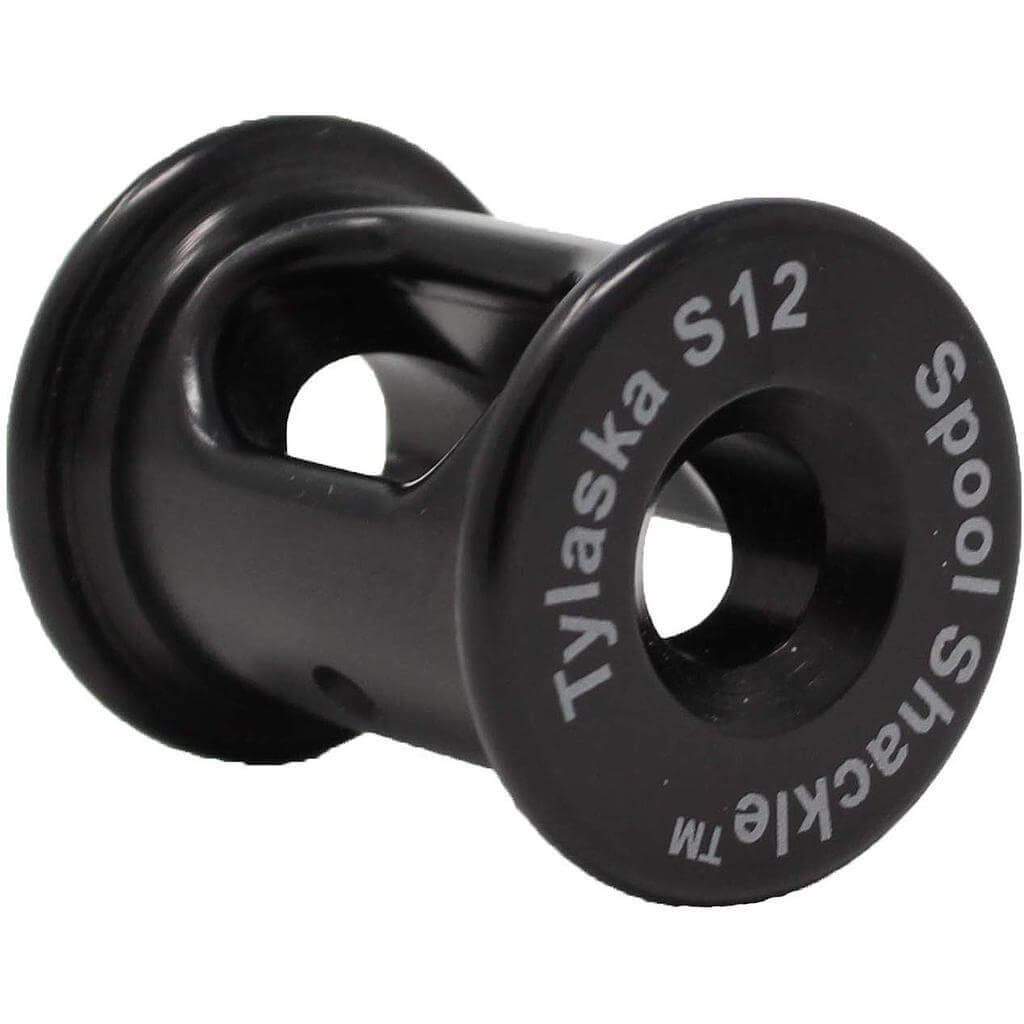

Specifications for Tylaska S12 Spool Shackle™
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 45 |
| Dimensione barca consigliata - Min (ft) | 30 |
| Load | |
| SWL (kg) | 2727 |
| NBL (kg) | 5454 |
| Dimensions | |
| A (mm) | 23.1 |
| B (mm) | 11.1 |
| C (mm) | 33.3 |
| D (mm) | 39.7 |
| E (mm) | 26.2 |
| F (mm) | 33.7 |
| Material | |
| Materiale | Alluminio |
| Weight | |
| Peso (g) | 46 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Cima consigliata - Ø Min (mm) | 8 |
| Boat | |
|---|---|
| Dimensione barca consigliata - Max (ft) | 45 |
| Dimensione barca consigliata - Min (ft) | 30 |
| Load | |
|---|---|
| SWL (kg) | 2727 |
| NBL (kg) | 5454 |
| Dimensions | |
|---|---|
| A (mm) | 23.1 |
| B (mm) | 11.1 |
| C (mm) | 33.3 |
| D (mm) | 39.7 |
| E (mm) | 26.2 |
| F (mm) | 33.7 |
| Material | |
|---|---|
| Materiale | Alluminio |
| Weight | |
|---|---|
| Peso (g) | 46 |
