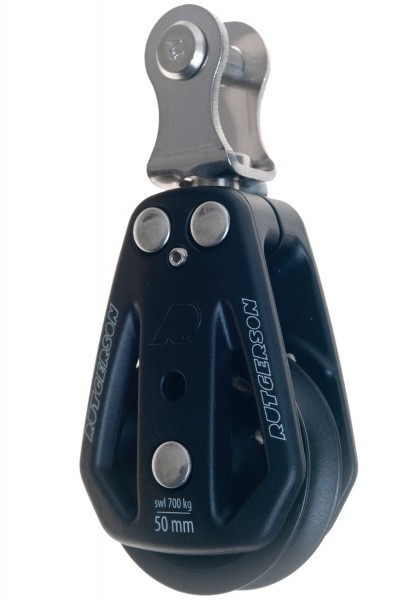

Rutgerson bozzello 60mm, Cuscinetto a strisciamento, Puleggia singola, Snodo mobile, Larghezza forcella 14mm, Perno 8mm
SKU:
N/A
Marca:
Rutgerson
Single-disc plain bearing blocks with 50mm, 60mm or 80mm disc diameter. The connection is made by a fixed or movable clevis. These blocks are used by many French mast manufacturers (Sparcraft, Z-Spar) and shipyards (Jeanneau, Bénetau and Dufour) for halyard deflection at the mast base or deck ring. Sheave-Ø Fork width Pin-Ø Working load Rope-Ø Weight 50mm 12mm 6mm 700kg 4 - 12mm 124g 50mm 14mm 8mm 700kg 4 - 12mm 130g 60mm 12mm 6mm 850kg 6 - 14mm 210g 60mm 14mm 8mm 850kg 6 - 14mm 270g 80mm 14mm 8mm 1430kg 10 - 16mm 424g
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | - |
| Boat |
|---|
| Blocks | |
|---|---|
| Tipo di cuscinetti | - |
| Cricchetto | No |
| Dimensions | |
|---|---|
| Ø puleggia (mm) | - |
| Compatibility |
|---|
