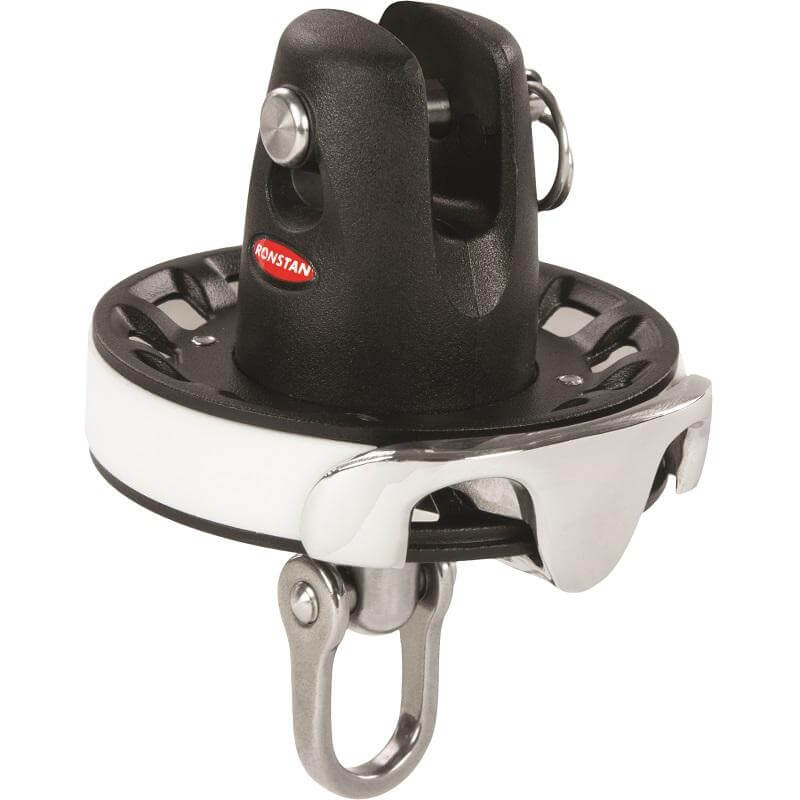

Specifications for Ronstan Serie 60 avvolgitore - Tamburo, bottom-up
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 5 |
| Boat | |
| Dimensione barca consigliata - Max (ft) | 23 |
| Load | |
| SWL (kg) | 650 |
| NBL (kg) | 1300 |
| Dimensions | |
| A (mm) | 87.2 |
| B (mm) | 6.4 |
| C (mm) | 52.5 |
| D (mm) | 72.6 |
| F (mm) | 8.6 |
| G (mm) | 5.9 |
| H (mm) | 4.7 |
| I (mm) | 62.6 |
| J (mm) | 65.8 |
| Ø tamburo (mm) | 63 |
| Ø perno ganascia (mm) | 6 |
| Larghezza ganascia (mm) | 8.6 |
| Ø perno (mm) | 5.9 |
| Weight | |
| Peso (g) | 138 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
