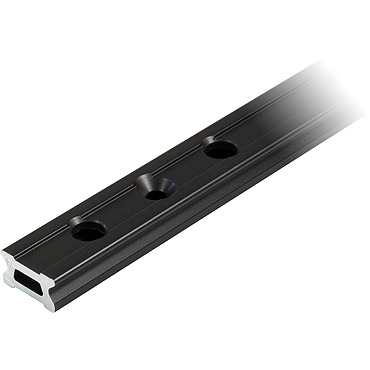

Ronstan Serie 19 Binario, Nero, 1996 mm fori fissaggio M5 svasati. Interasse=100mm Interasse fori di arresto=50mm
Specifications for Ronstan Serie 19 Binario, Nero, 1996 mm fori fissaggio M5 svasati. Interasse=100mm Interasse fori di arresto=50mm
| Boat | |
|---|---|
| Dimensions | |
| Lunghezza totale (mm) | 1996 |
| Larghezza totale (mm) | 19 |
| Weight | |
| Peso (g) | 620 |
Applications:
Dinghy and catamaran mainsheet traveller and jib lead sheeting systems
Mainsheet systems on sportsboats and keel boats to 7m (23ft)
Materials:
Alloy
Product information:
TRACK FASTENINGS – 5mm (3/16") countersunk fasteners at 100mm (3 15/16") centres
STOP HOLES – 50mm (1 31/32") centres
MINIMUM CURVE RADIUS
For 50mm (1 31/32") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").
For 57mm (2 1/4") car. Min horizontal 'A' curve radius = 1500mm (59"). Min horizontal 'B' curve radius = 1500mm (59").
For 70mm (2 3/4") car. Min horizontal 'A' curve radius = 2500mm (99"). Min horizontal 'B' curve radius = 3000mm (118").
For 85mm (3 11/32") car. Min horizontal 'A' curve radius = 3500mm (138"). Min horizontal 'B' curve radius = 4500mm (177").
For 100mm (3 15/16") car. Min horizontal 'A' curve radius = 5000mm (197"). Min horizontal 'B' curve radius = 5500mm (217").
For 148mm (5 27/32") car. Min horizontal 'A' curve radius = 11000mm (433"). Min horizontal 'B' curve radius = 15000mm (591"). Standard low profile track has stop holes to accept cars with plunger stops.
Specifiche
| Boat |
|---|
| Dimensions | |
|---|---|
| Lunghezza totale (mm) | 1996 |
| Larghezza totale (mm) | 19 |
| Weight | |
|---|---|
| Peso (g) | 620 |
