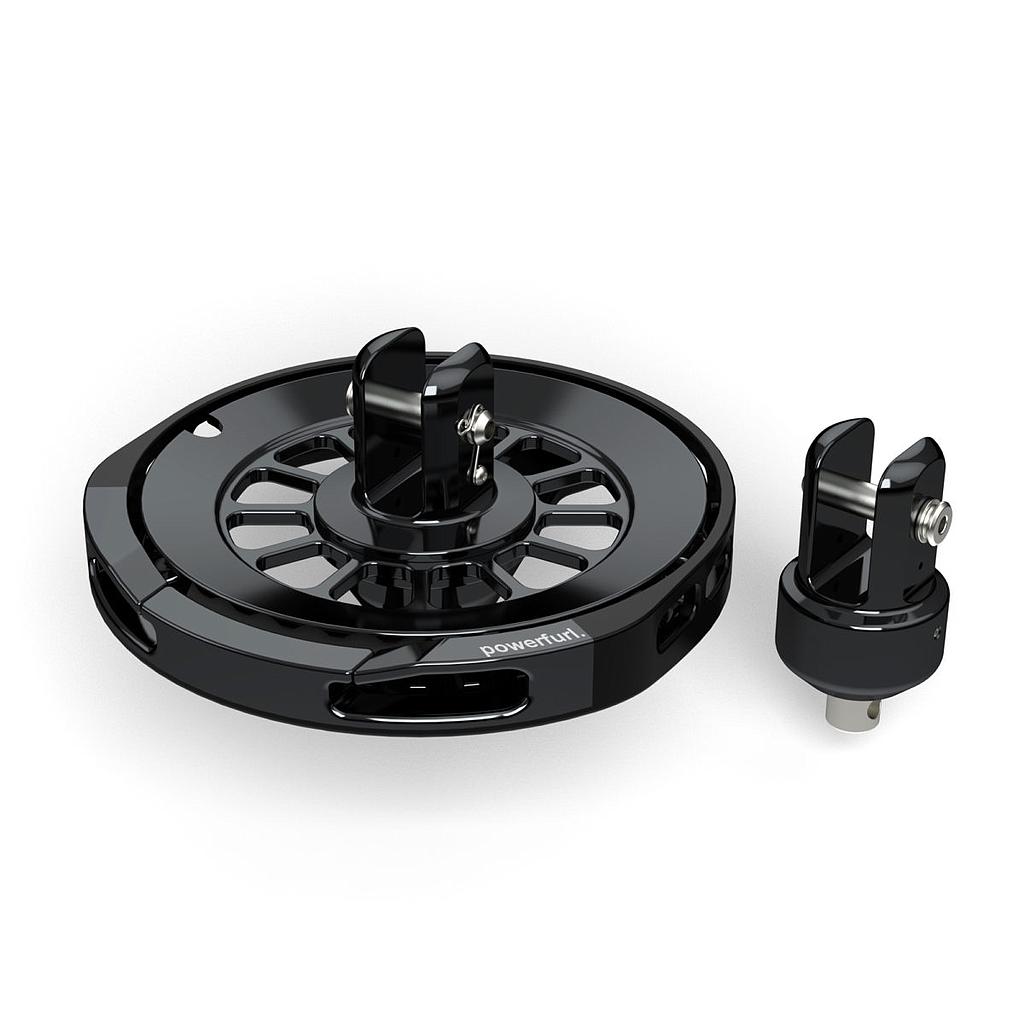

MORFRAC powerfurl.[three] – Drum and Swivelhead (3t SWL)
Positioned at the heart of the Morfrac Powerfurl range, the powerfurl.[three] delivers an ideal balance of size, strength, and versatility for yachts up to approximately 40–45 feet. With a Safe Working Load of 3 tonnes, it is suited to a wide range of foresails, including Code 0s, staysails, and gennakers, whether racing or fast cruising.
As with all Morfrac furlers, the [three] model features a robust, lightweight design constructed from CNC-machined 6082 aluminium alloy, hard-anodised for longevity. The internal bearing system uses a hybrid arrangement of stainless steel and Torlon® for high-load, low-friction performance—ensuring smooth furling even under demanding conditions.
Key Features:
- SWL: 3t (MBS: 6t)
- Optimised for performance yachts up to ~45ft LOA
- Hard-anodised 6082 aluminium alloy, CNC-machined to tight tolerances
- Torlon®/stainless steel hybrid bearings for durability and fluid rotation
- Flush, compact geometry with minimal windage
- Modular terminal system supports various rigging options
- Made in Spain to high-spec manufacturing standards
Package Variants:
- Bare Drum & Swivelhead (No Attachments) – Delivered without terminal fittings for full customisation or integration into bespoke rigging setups.
- Shackle Attachment (Drum and Swivel) – Includes forged stainless steel shackles at both ends, each fully certified to the furler’s 3t SWL. Unlike many competing systems that introduce weaker shackles as “fuse links”, Morfrac ensures uniform load capacity across the entire assembly—reinforcing trust in the rated performance.
- Mixed Fitting (Shackle + Lash) – Combines one lash fitting with one shackle to accommodate hybrid rigging preferences or asymmetrical deck layouts.
- Double Lash Fittings – Lash eyelets on both the drum and swivelhead for full textile connectivity and reduced weight aloft.
Accessories including terminal kits, deck blocks, and top-down adapters are available separately to complete your furling setup.
Specifiche
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 3000 |
| Dimensions | |
|---|---|
| Ø tamburo (mm) | 175 |
| Ø perno ganascia (mm) | 10 |
| Larghezza ganascia (mm) | 19 |
| Furling | |
|---|---|
| Peso girella (g) | 260 |
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso tamburo (g) | 780 |
| Peso (g) | 1040 |
