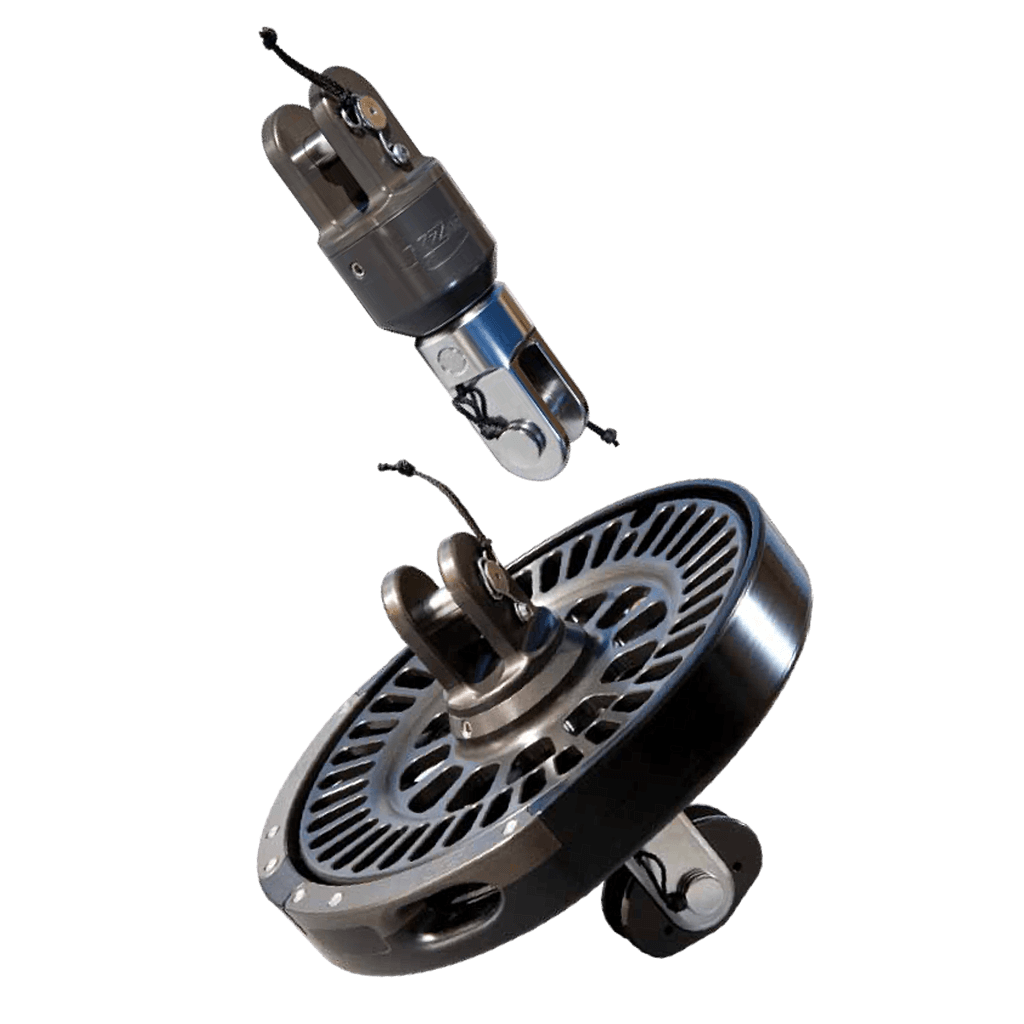

KZ Racefurlers are world renowned for performance and reliability. With the unique modular approach, each furler size can be adapted to suit the specific application.
Each furler is available with a choice of forks on top and various fittings for below the drum, such as Wichard or Tylaska shackles, 2:1 or 3:1 purchase. Similar options are available for the top swivels.
We have grouped the furlers to have the same jaw width between the drum and swivel for simplicity of matching to a torsional cable. Options for below the drum and above the swivel can be chosen via the selection buttons.
Please refer to the relevant technical drawing for all properties.
The Inshore range is a simpler and more cost effective alternative to the Offshore range, suitable for cruising boats and inshore racing.
Specifiche
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| NBL (kg) | 1800 |
| Dimensions | |
|---|---|
| Ø perno ganascia (mm) | 8 |
| Larghezza ganascia (mm) | 12.5 |
| Furling | |
|---|---|
| Raccordo superiore girella* | N1 - 12.5mm Jaw oppure N2 - 16mm Jaw |
| Raccordo superiore del tamburo | N1 - 12.5mm Jaw |
| Raccordo inferiore girella | D-shackle |
| Undefined | |
|---|---|
| Raccordo inferiore del tamburo* | D-shackle oppure Wichard Plunger Snap Shackle oppure TA5 - Tylaska Trigger Snap Shackle |
