KA-KBO08_Karver Drawing Lashing Block_001.pdf
Karver KBO8 Lashing Block Technical Drawing
|
|
|
|
KA-KBO08_Karver 2D Drawing Lashing Block_001.DWG
Karver KBO8 2D Lashing Block Technical Drawing
|
|
|
|
KA-KBO08_Karver 3D Drawing Lashing Block_001.IGS
Karver KBO8 3D Lashing Block Technical Drawing
|

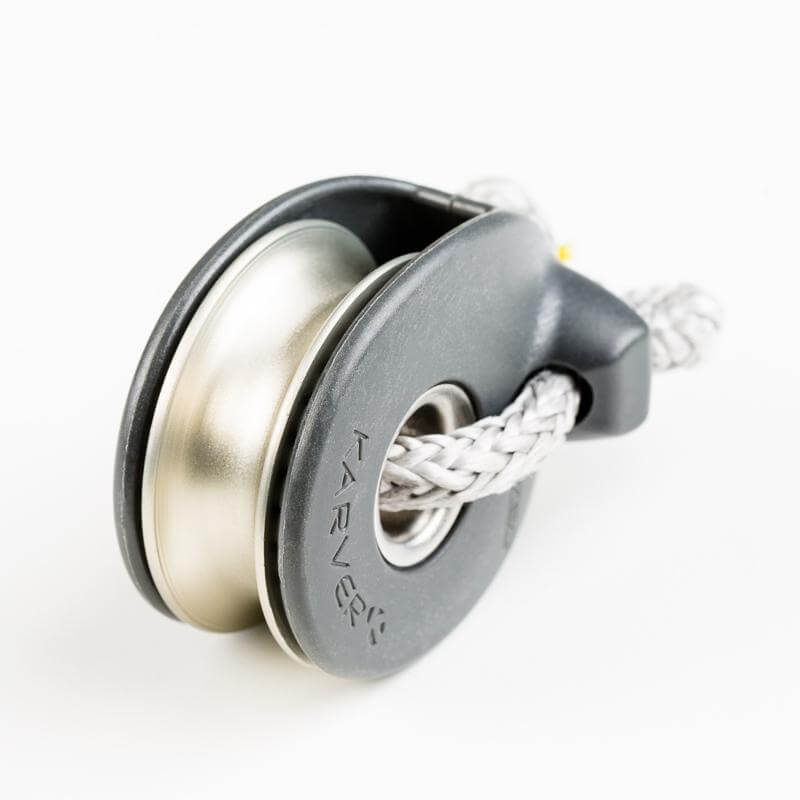

The KBO rope lashing, which comes supplied with the block, makes fitting easier and quicker than standard shackles and will never sieze due to load or rust over the years. The cheeks are made from aluminium alloy and the block features a two stage bearare made from Plastic & fibre and the block features a two stage bearing system to enhance their low friction performance under higher loads. The range includes Double and Triple versions up to KBO8 which make them ideal for building cascade systems.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 850 |
| NBL (kg) | 1700 |
| Blocks | |
|---|---|
| Tipo di cuscinetti | Ball bearing |
| Cricchetto | No |
| Dimensions | |
|---|---|
| Ø puleggia (mm) | 47 |
| Furling |
|---|
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 80 |
