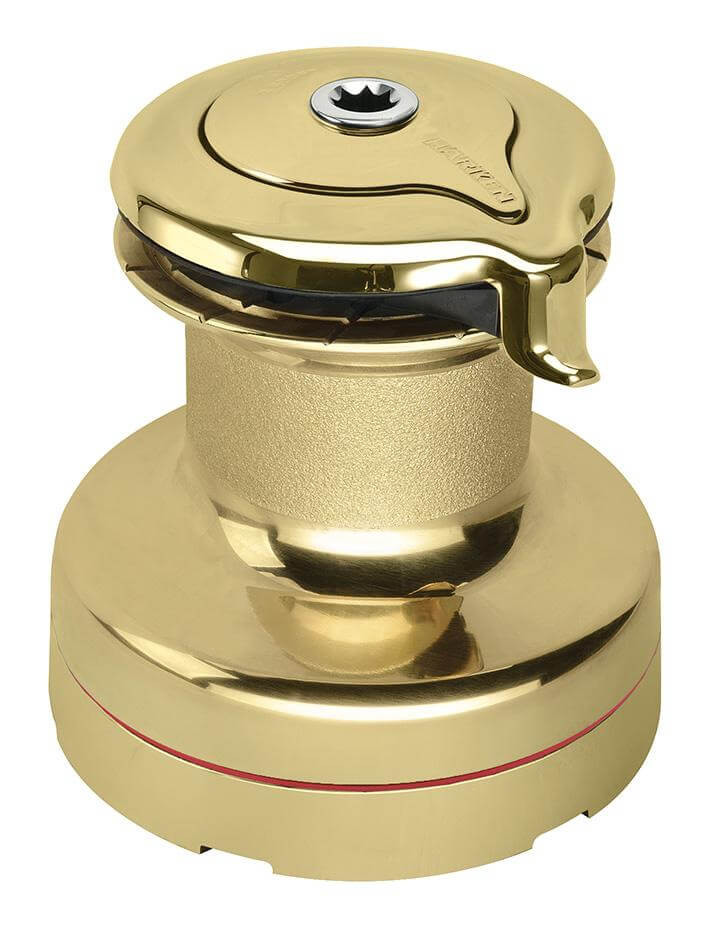

Specifications for Harken 70 2-Speed S/T Radial Bronze Winch
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
| Stile | Self-Tailing |
| Load | |
| SWL (kg) | 2700 |
| Dimensions | |
| A (mm) | 130 |
| B (mm) | 240 |
| C (mm) | 256 |
| D (mm) | 115 |
| Ø base (mm) | 240 |
| Ø tamburo (mm) | 130 |
| Altezza (mm) | 256 |
| Altezza ingresso cima (mm) | 115 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 5.7 |
| Rapporto ingranaggi 2 (X : 1) | 18.5 |
| Marce (manuale) | 2-Speed |
| Rapporto potenza 1 (X : 1) | 22.2 |
| Rapporto potenza 2 (X : 1) | 72 |
| Material | |
| Materiale | Bronze |
| Undefined | |
| Taglia | 70 |
| Weight | |
| Peso (g) | 16700 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads, stress-free seasonal maintenance, and one-person installation. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. Harken's all-bronze finish enhances your yacht’s classic look, while providing the low-friction pulling power of Harken’s gearing systems.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Cima consigliata - Ø Min (mm) | 10 |
| Boat | |
|---|---|
| Stile | Self-Tailing |
| Load | |
|---|---|
| SWL (kg) | 2700 |
| Dimensions | |
|---|---|
| A (mm) | 130 |
| B (mm) | 240 |
| C (mm) | 256 |
| D (mm) | 115 |
| Ø base (mm) | 240 |
| Ø tamburo (mm) | 130 |
| Altezza (mm) | 256 |
| Altezza ingresso cima (mm) | 115 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 5.7 |
| Rapporto ingranaggi 2 (X : 1) | 18.5 |
| Marce (manuale) | 2-Speed |
| Rapporto potenza 1 (X : 1) | 22.2 |
| Rapporto potenza 2 (X : 1) | 72 |
| Material | |
|---|---|
| Materiale | Bronze |
| Undefined | |
|---|---|
| Taglia | 70 |
| Weight | |
|---|---|
| Peso (g) | 16700 |
