Specifications for Antal SectoRing D53 senza Loop
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat | |
| Load | |
| SWL (kg) | 1700 |
| NBL (kg) | 3400 |
| Blocks | |
| Tipo di cuscinetti | Plain bearing |
| Cricchetto | No |
| Dimensions | |
| D (mm) | 53 |
| d (mm) | 12 |
| Ø interno (mm) | 12 |
| Ø puleggia (mm) | 53 |
| Furling | |
| Undefined | |
| Colore* | Black |
| Compatibility | |
| Weight | |
| Peso (g) | 60 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

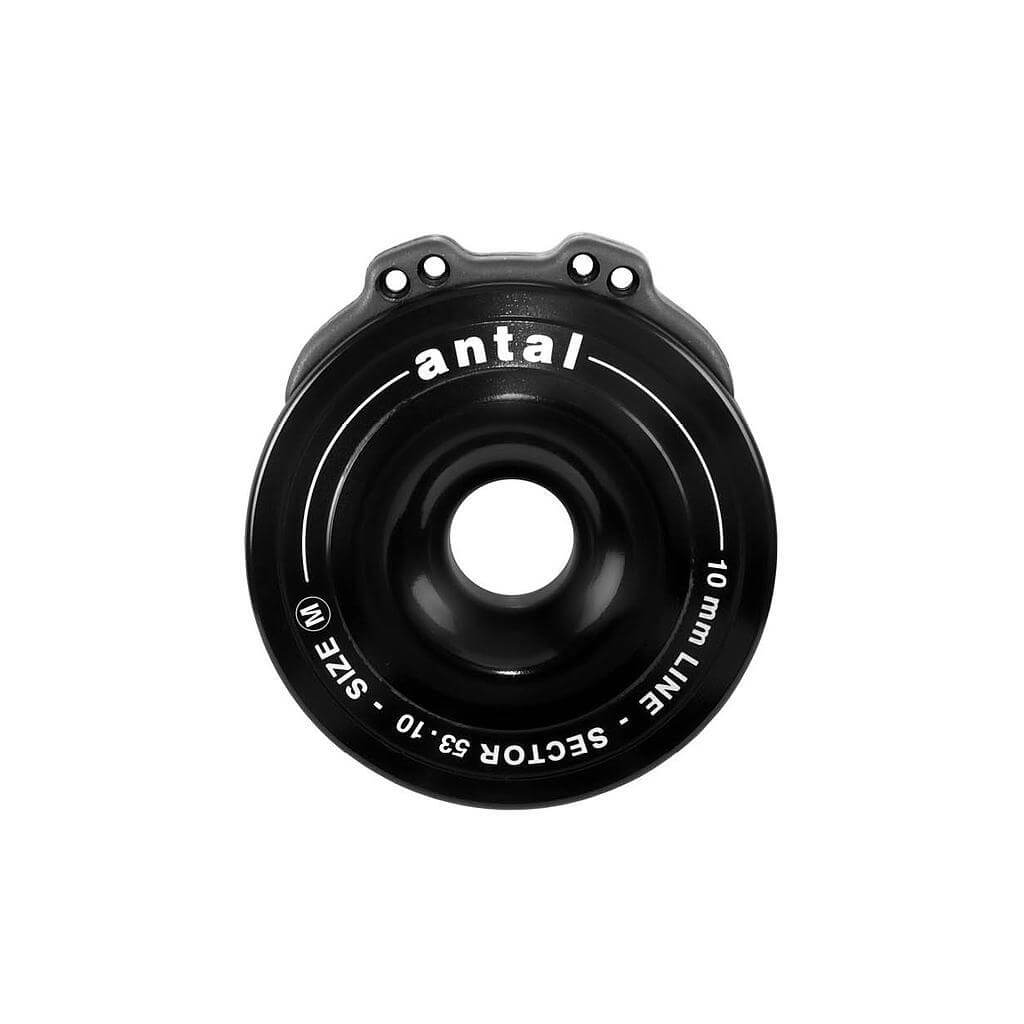

SectoRing, the spinning ring with a guiding cover, small in size and low in weight, the perfect solution for high loads where large and fast movements are not required.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1700 |
| NBL (kg) | 3400 |
| Blocks | |
|---|---|
| Tipo di cuscinetti | Plain bearing |
| Cricchetto | No |
| Dimensions | |
|---|---|
| D (mm) | 53 |
| d (mm) | 12 |
| Ø interno (mm) | 12 |
| Ø puleggia (mm) | 53 |
| Furling |
|---|
| Undefined | |
|---|---|
| Colore* | Black |
| Compatibility |
|---|
| Weight | |
|---|---|
| Peso (g) | 60 |
