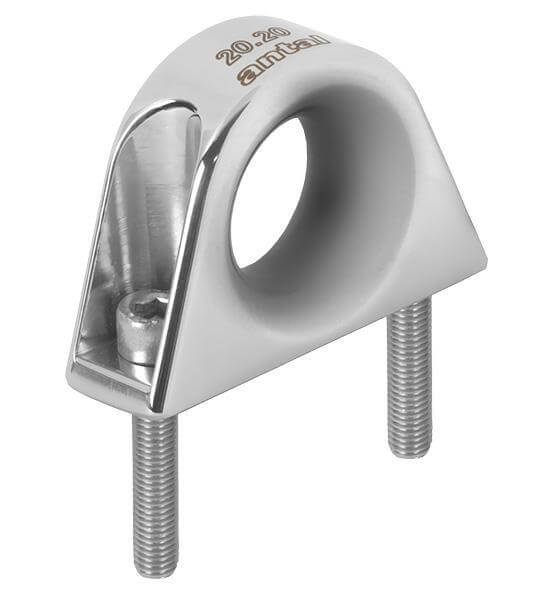

Specifications for Antal Passacavo - Inox, Cima 18mm
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Boat | |
| Load | |
| SWL (kg) | 1500 |
| Blocks | |
| Dimensions | |
| B (mm) | 38 |
| C (mm) | 20 |
| D (mm) | 20 |
| Ø foro di fissaggio (mm) | 8 |
| Altezza (mm) | 39 |
| Ø foro (mm) | 20 |
| Lunghezza (mm) | 59 |
| Larghezza (mm) | 19 |
| Material | |
| Materiale | Acciaio inox |
| Weight | |
| Peso (g) | 120 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 18 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1500 |
| Blocks |
|---|
| Dimensions | |
|---|---|
| B (mm) | 38 |
| C (mm) | 20 |
| D (mm) | 20 |
| Ø foro di fissaggio (mm) | 8 |
| Altezza (mm) | 39 |
| Ø foro (mm) | 20 |
| Lunghezza (mm) | 59 |
| Larghezza (mm) | 19 |
| Material | |
|---|---|
| Materiale | Acciaio inox |
| Weight | |
|---|---|
| Peso (g) | 120 |
