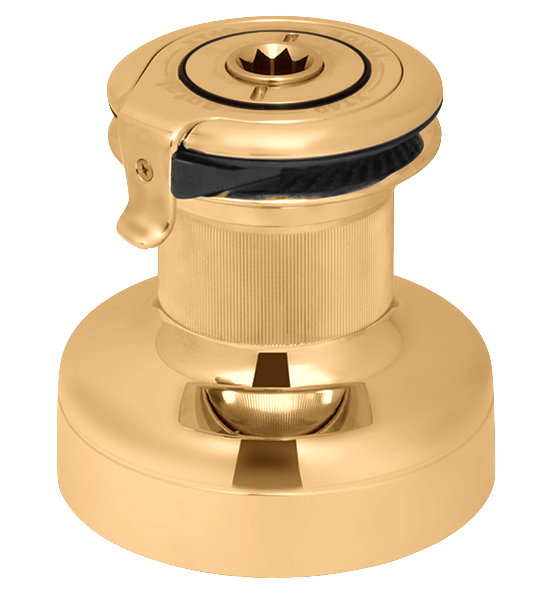

Specifications for Antal 30 Verricello autovirante in bronzo - 2 velocità
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Cima consigliata - Ø Min (mm) | 6 |
| Boat | |
| Stile | Self-Tailing |
| Dimensions | |
| Ø base (mm) | 128 |
| Ø tamburo (mm) | 73 |
| Altezza (mm) | 135 |
| Winches | |
| Rapporto ingranaggi 1 (X : 1) | 1 |
| Rapporto ingranaggi 2 (X : 1) | 4.1 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 229 |
| Recupero cima per giro - 2ª marcia (mm) | 58 |
| Rapporto potenza 1 (X : 1) | 7 |
| Rapporto potenza 2 (X : 1) | 28 |
| Material | |
| Materiale | Bronze |
| Undefined | |
| Taglia | 30 |
| Weight | |
| Peso (g) | 3700 |
| Garanzia (anni) | 3 |
|
Antal Winch Selection Guide.pdf
|
|
|
|
Antal_XT30.2 CH_Exploded view.pdf
Exploded View of Antal Winch XT30.2_CH
|
|
|
|
Antal_Installation_and_Maintenance_Manual_XT16.2_XT30.2_635809481143518786.pdf
|
|
|
|
Antal_Winches_Catalogue.pdf
|
|
|
|
WP - Winch selection guide.pdf
|
Two Speed Winch: Direct, Reduced
The two smallest models (XT16 and XT30) have a single reduced speed, giving a slow but powerful gear. The handle turns freely the other way. Both available in chrome (CH) or hard black alloy (AL).
POLISHED BRONZE (BN): rather than plating the bronze with chrome, the polished bronze winches use the natural colour of the bronze material to a polished finish.
NEW SELF-TAILING XT SYSTEM: fixed upper disk with built in ST arm and self-regulating lower disk on springs. The new self-tailing adapts automatically to a wide range of rope diameters and, if overloading occurs, releases the line to avoid excess force on the ST arm.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 10 |
| Cima consigliata - Ø Min (mm) | 6 |
| Boat | |
|---|---|
| Stile | Self-Tailing |
| Dimensions | |
|---|---|
| Ø base (mm) | 128 |
| Ø tamburo (mm) | 73 |
| Altezza (mm) | 135 |
| Winches | |
|---|---|
| Rapporto ingranaggi 1 (X : 1) | 1 |
| Rapporto ingranaggi 2 (X : 1) | 4.1 |
| Marce (manuale) | 2-Speed |
| Recupero cima per giro - 1ª marcia (mm) | 229 |
| Recupero cima per giro - 2ª marcia (mm) | 58 |
| Rapporto potenza 1 (X : 1) | 7 |
| Rapporto potenza 2 (X : 1) | 28 |
| Material | |
|---|---|
| Materiale | Bronze |
| Undefined | |
|---|---|
| Taglia | 30 |
| Weight | |
|---|---|
| Peso (g) | 3700 |
| Garanzia (anni) | 3 |
