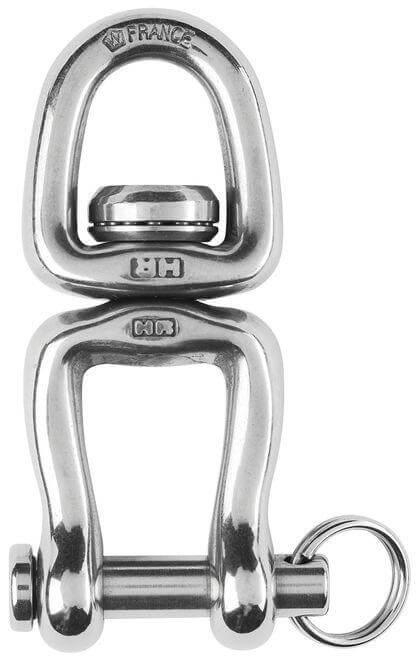

Specifications for Wichard Swivel - With clevis pin - Length: 70 mm
| Boat | |
|---|---|
| Load | |
| Charge de travail (kg) | 1600 |
| Charge de rupture (kg) | 2800 |
| Dimensions | |
| A (mm) | 14 |
| B (mm) | 21 |
| C (mm) | 11 |
| D (mm) | 11 |
| Ø axe (mm) | 11 |
| Longueur totale (mm) | 70 |
| Material | |
| Matériau | Acier inoxydable |
| Material Grade | AISI 630 (17-4 / HR) |
| Weight | |
| Poids (g) | 87 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
HR forged swivel (17.4 Ph) with only one opening side and one eye
Outstanding working and breaking loads
Applications
Link two pieces which have different rotation
Do not use for mooring applications
