Specifications for Ronstan Gennaker furling - Snap shackle
| Boat | |
|---|---|
| Style | Swivel Clevis Bail |
| Load | |
| Charge de travail (kg) | 500 |
| Charge de rupture (kg) | 1000 |

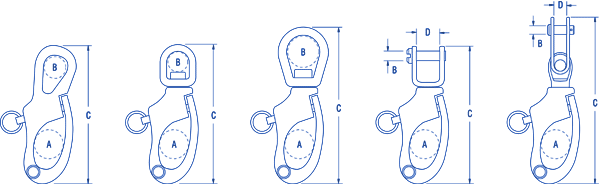

| Dimensions | |
| A (mm) | 16 |
| B (mm) | 5 |
| C (mm) | 60 |
| Ø axe (mm) | 5 |
| Longueur totale (mm) | 60 |
| Material | |
| Matériau | 15-5PH SS |
| Weight | |
| Poids (g) | 49 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
Ronstan's range of stainless steel snap shackles feature heavy-duty plunger springs and precision components, ensuring dependable service. RF6170 is a snap shackle adapter for blocks with a 5mm pin. It can also replace the shackle on either the furler or top swivel of Ronstan's gennaker furler system for quick attachment of the furler to your bow fitting or the top swivel to your halyard.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Spécifications
| Boat | |
|---|---|
| Style | Swivel Clevis Bail |
| Load | |
|---|---|
| Charge de travail (kg) | 500 |
| Charge de rupture (kg) | 1000 |
| Dimensions | |
|---|---|
| A (mm) | 16 |
| B (mm) | 5 |
| C (mm) | 60 |
| Ø axe (mm) | 5 |
| Longueur totale (mm) | 60 |
| Material | |
|---|---|
| Matériau | 15-5PH SS |
| Weight | |
|---|---|
| Poids (g) | 49 |
