Specifications for Armare T-Bone misura 4
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 22 |
| Boat | |
| Load | |
| SWL (kg) | 3000 |
| NBL (kg) | 9000 |
| Dimensions | |
| A (mm) | 22 |
| B (mm) | 66 |
| C (mm) | 13 |
| D (mm) | 19 |
| Undefined | |
| Weight | |
| Peso (g) | 88 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.

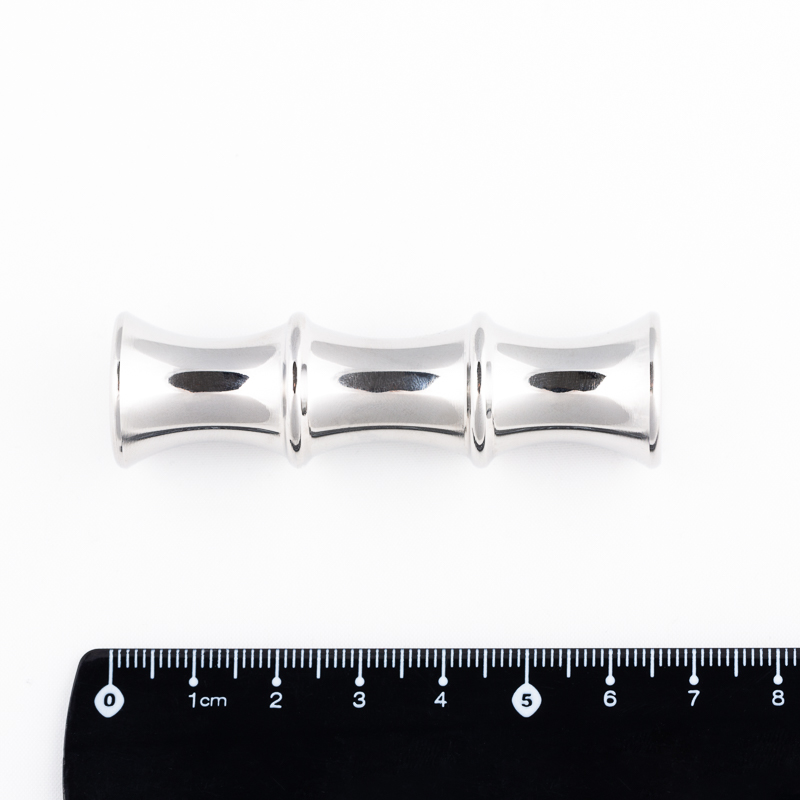

The dogbone is a key element of any performance rigging package used in conjunction with soft loops and strops on-board. The Armare T-Bone is made from high strength 17-4PH stainless steel and designed to withstand a high loads. they are available in 5 sizes.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 22 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 3000 |
| NBL (kg) | 9000 |
| Dimensions | |
|---|---|
| A (mm) | 22 |
| B (mm) | 66 |
| C (mm) | 13 |
| D (mm) | 19 |
| Undefined |
|---|
| Weight | |
|---|---|
| Peso (g) | 88 |
