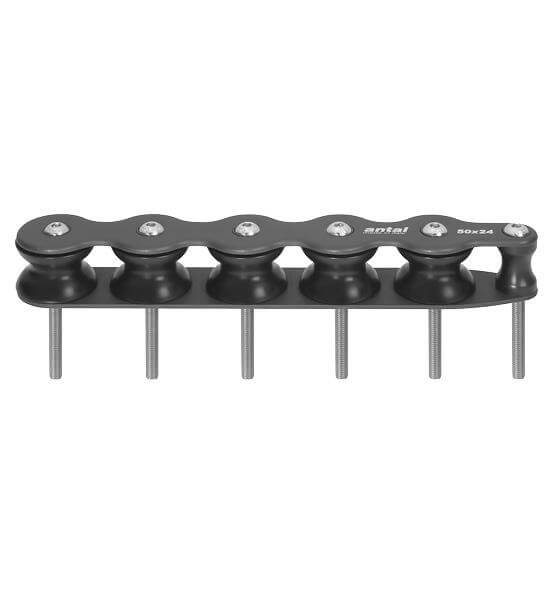

Antal offers a special line of organisers featuring Tulip sheaves. Tulip sheaves have a particular groove shape that allows a line lead angle range of 40°. Torsion loads are borne by large lateral ball bearings. Low friction is thus always guaranteed even when the line is deflected.
Mounting screws, nuts and washers included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifiche
| Ropes | |
|---|---|
| Cima consigliata - Ø Max (mm) | 12 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 1000 |
| Blocks | |
|---|---|
| Materiale puleggia | Plastic |
| Materiale guance | Aluminium |
| Dimensions | |
|---|---|
| Interasse fori di fissaggio (mm) | 52 |
| Ø puleggia (mm) | 45 |
| Altezza totale (mm) | 42 |
| Lunghezza totale (mm) | 289 |
| Larghezza totale (mm) | 45 |
| Compatibility | |
|---|---|
| Elementi di fissaggio per montaggio | M6 (supplied) |
| Weight | |
|---|---|
| Peso (g) | 720 |
