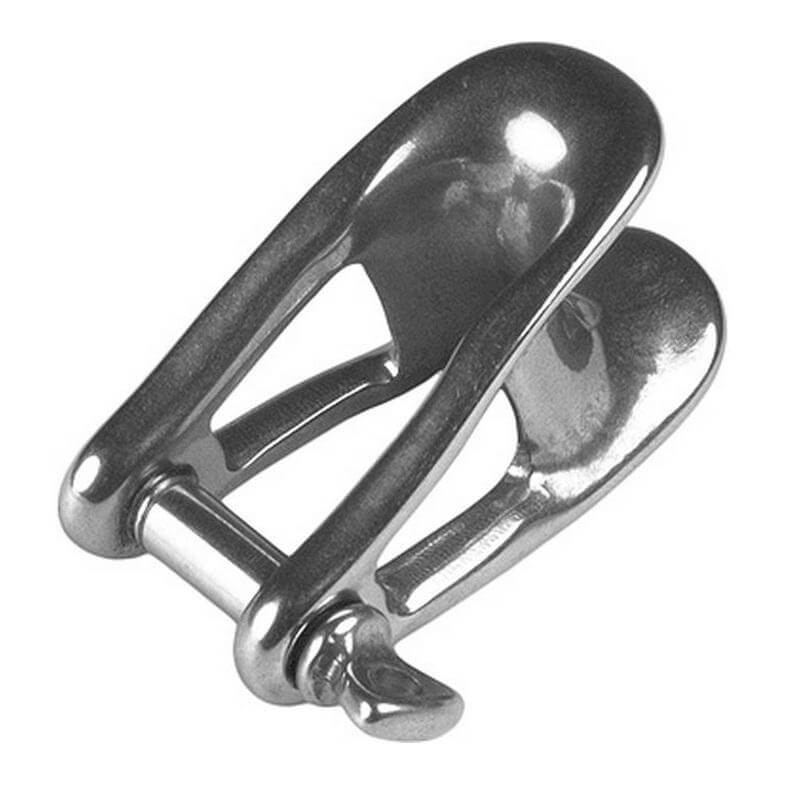

Specifications for Ronstan Enrollador Serie 160 - Grillete de fricción 2:1
| Ropes | |
|---|---|
| Cabo recomendado - Ø máx (mm) | 10 |
| Boat | |
| Eslora de barco recomendada - Máx (ft) | 170 |
| Eslora de barco recomendada - Mín (ft) | 120 |
| Load | |
| SWL (kg) | 2640 |
| NBL (kg) | 6000 |
| Dimensions | |
| A (mm) | 34 |
| B (mm) | 10 |
| C (mm) | 22 |
| D (mm) | 61 |
| Ø del pasador (mm) | 10 |
| Material | |
| Material | Aluminio AL6061 |
| Weight | |
| Peso (g) | 186 |
Product specifications
are provided for guidance only, subject to error /
change and without warranty or guarantee. Refer to
manufacturer’s own datasheets / manuals for further
information.
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Top Down Furler Manual
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Bottom Up Furler Manual_001.pdf
Ronstan Series 160 Gen 2 Bottom Up Furler Manual
|
|
|
|
R-RS_Ronstan Furlers Accessories Compatibility_001.pdf
Ronstan Furlers Accessories Compatibility
|
|
|
|
R-RS216100_Ronstan S160 Gen 2 Top Down Furler Drawing_001.PDF
Ronstan S160 Gen 2 Top Down Furler Technical Drawing
|
|
|
|
R-RS216000_Ronstan S160 Gen 2 Furler Drawing_001.PDF
Ronstan S160 Gen 2 Furler Technical Drawing
|
