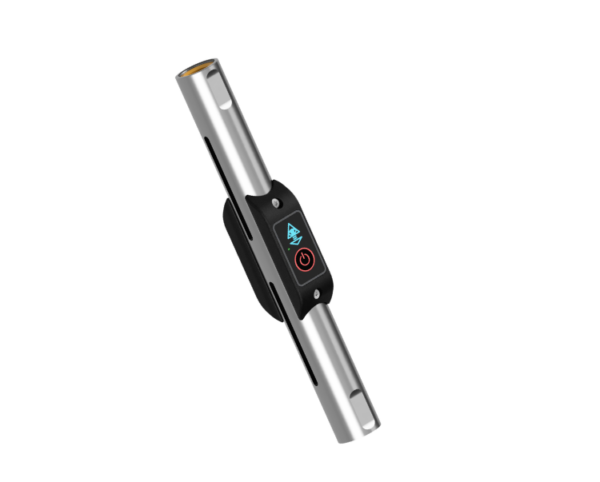

Cyclops Marine smarttune 3/4" – Wireless Load Sensor
The Cyclops Marine smarttune 3/4" is a high-precision wireless load sensor, designed to replace standard turnbuckles and provide real-time rigging load data with ±1% accuracy. Engineered for performance keelboats, offshore racers, and cruising yachts, it enables sailors to fine-tune rig tension for repeatable, optimised sail trim and enhanced performance. With seamless wireless integration, a robust marine-grade build, and effortless installation, the smarttune 3/4" is an essential upgrade for serious sailors.
Key Features & Benefits
✅ Precision Load Monitoring – Measures loads with ±1% accuracy of the Maximum Working Load (MWL), ensuring data-driven rigging adjustments.
✅ Easy Retro-Fit Installation – Replaces an existing turnbuckle with no complex modifications, making it a quick and effective upgrade.
✅ Wireless Connectivity – Connects via Bluetooth to the Cyclops Marine app or integrates with onboard electronics through the Cyclops Marine Gateway, enabling live load monitoring and data logging.
✅ Extended Battery Life – Operates for up to 8,000 hours in extended use mode and 2 years in powered-off mode, ensuring reliability across multiple seasons.
✅ Wireless Charging – Uses a Cyclops wireless charging pad, with LED indicators for clear charge status updates.
✅ Marine-Grade Durability – Built with an IP68-rated waterproof housing, designed to endure the toughest marine conditions.
✅ Customisable Data Frequency – Factory-set at 1Hz, with the option for custom frequency settings to match user preferences.
Technical Specifications
- Calibrated Load: 6 tonnes
- Material: 316L stainless steel body, brass-threaded inserts
- Accuracy: ±1% of MWL between 0-40°C
- Battery Life: Up to 8,000 hours in extended use mode
- IP Rating: IP68
How the smarttune 3/4" Fits into Your Sailing Setup
The smarttune 3/4" is designed for mid-to-large performance yachts and offshore racers, making it ideal for:
✔ Shrouds and sidestays – Maintain precise, repeatable rig tension for performance gains.
✔ Backstays and forestays – Optimise mast bend and sail shape for different wind conditions.
✔ Race tuning – Track and refine settings for consistent high-speed performance.
Safety and Reliability
- Overload Protection: Do not exceed 150% of the calibrated load, as this may cause permanent sensor damage requiring recalibration.
- Calibration: After extended use under load, allow 1-2 minutes for the sensor to return to zero when unloaded.
Enhance Your Sailing Performance with Real-Time Load Data
The Cyclops Marine smarttune 3/4" revolutionises rig tuning with instant, wireless load intelligence, making it an essential tool for performance sailors. Whether optimising rig settings for racing or ensuring safe rig tension, this precision-engineered sensor delivers the data needed to sail faster and smarter.
Upgrade your rigging today and gain a competitive edge with real-time load intelligence.
Especificaciones
| Electrics | |
|---|---|
| Autonomía de la batería | 5 months |
| Tipo de batería | 2x AAA |
| Resistencia al agua | IP67 |
| Boat |
|---|
| Load | |
|---|---|
| SWL (kg) | 8000 |
| NBL (kg) | 15900 |
| Dimensions | |
|---|---|
| Altura total (mm) | 36 |
| Longitud total (mm) | 255 |
| Ancho total (mm) | 71 |
| Rigging | |
|---|---|
| Tamaño de rosca | 3/4" |
| Material | |
|---|---|
| Material | Nitronic 60 |
| Undefined |
|---|
| Weight | |
|---|---|
| Peso (g) | 1500 |
| Garantía (años) | 2 |
